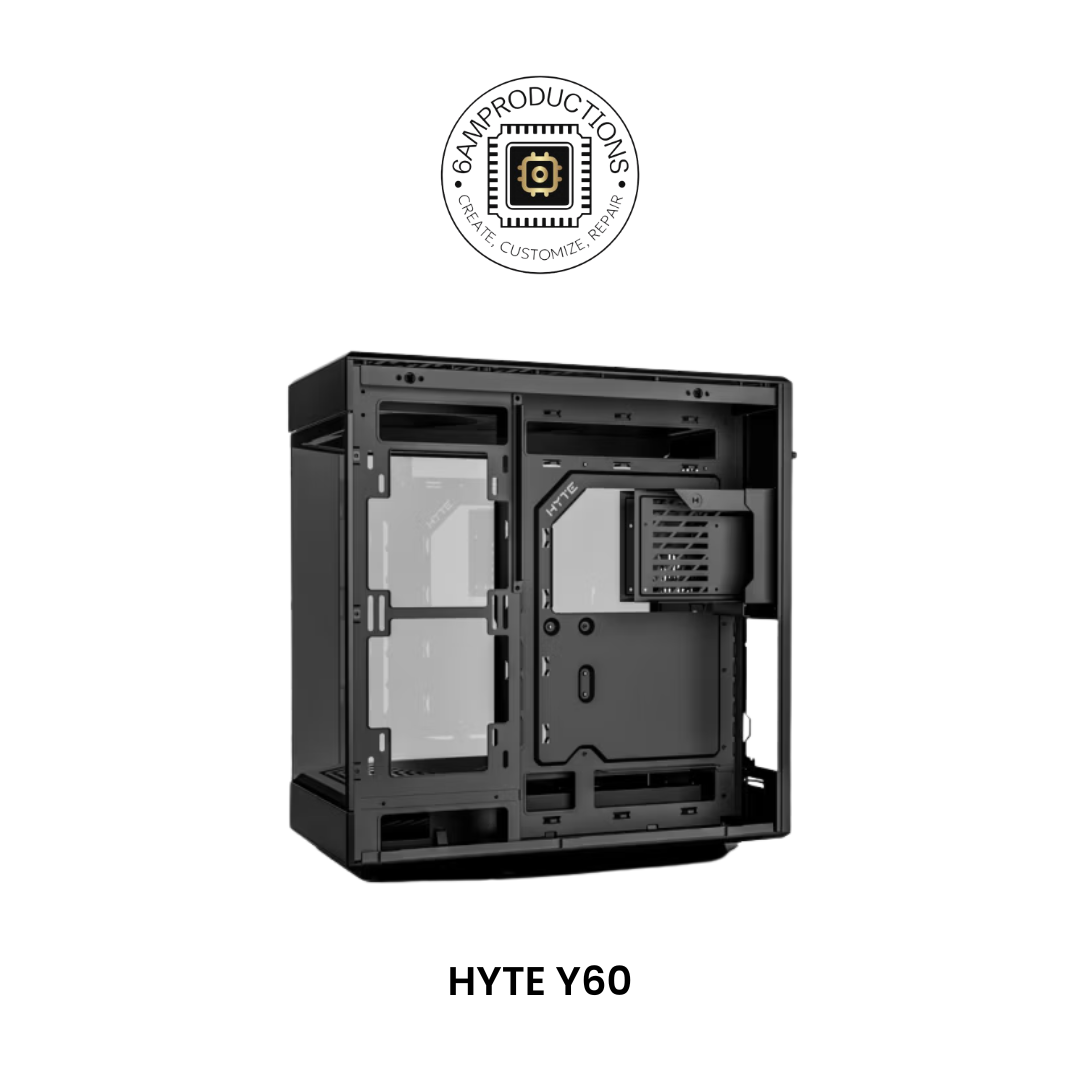

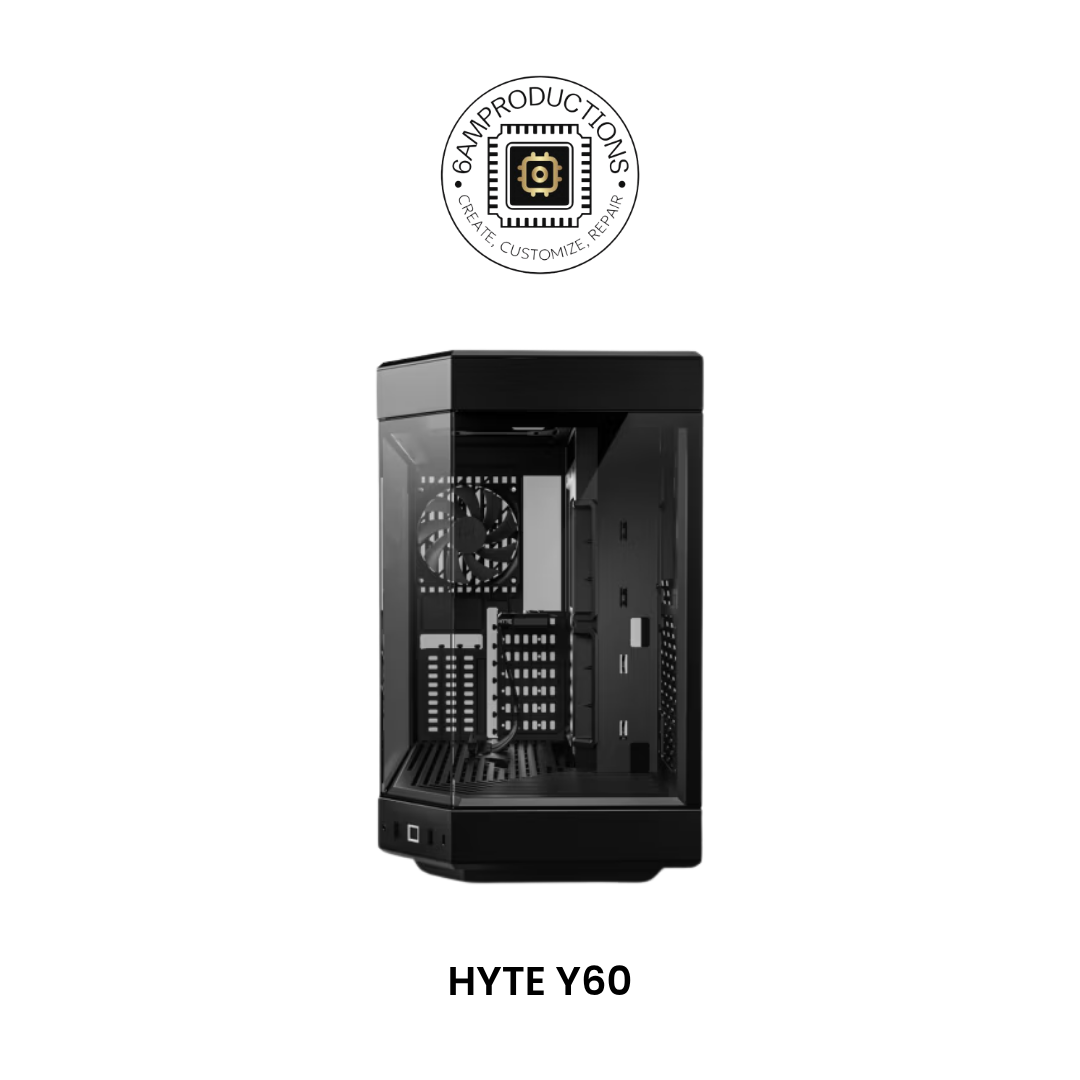

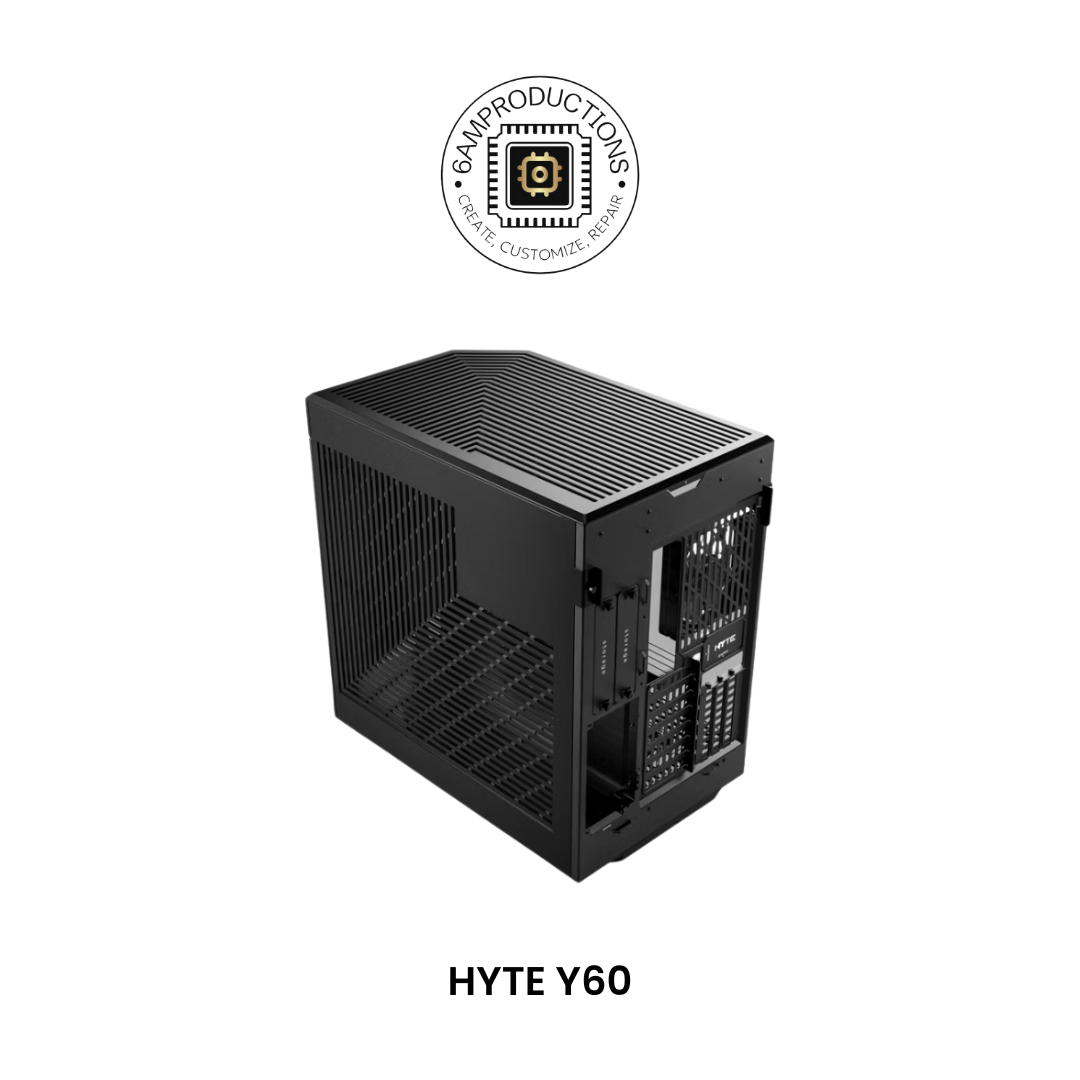

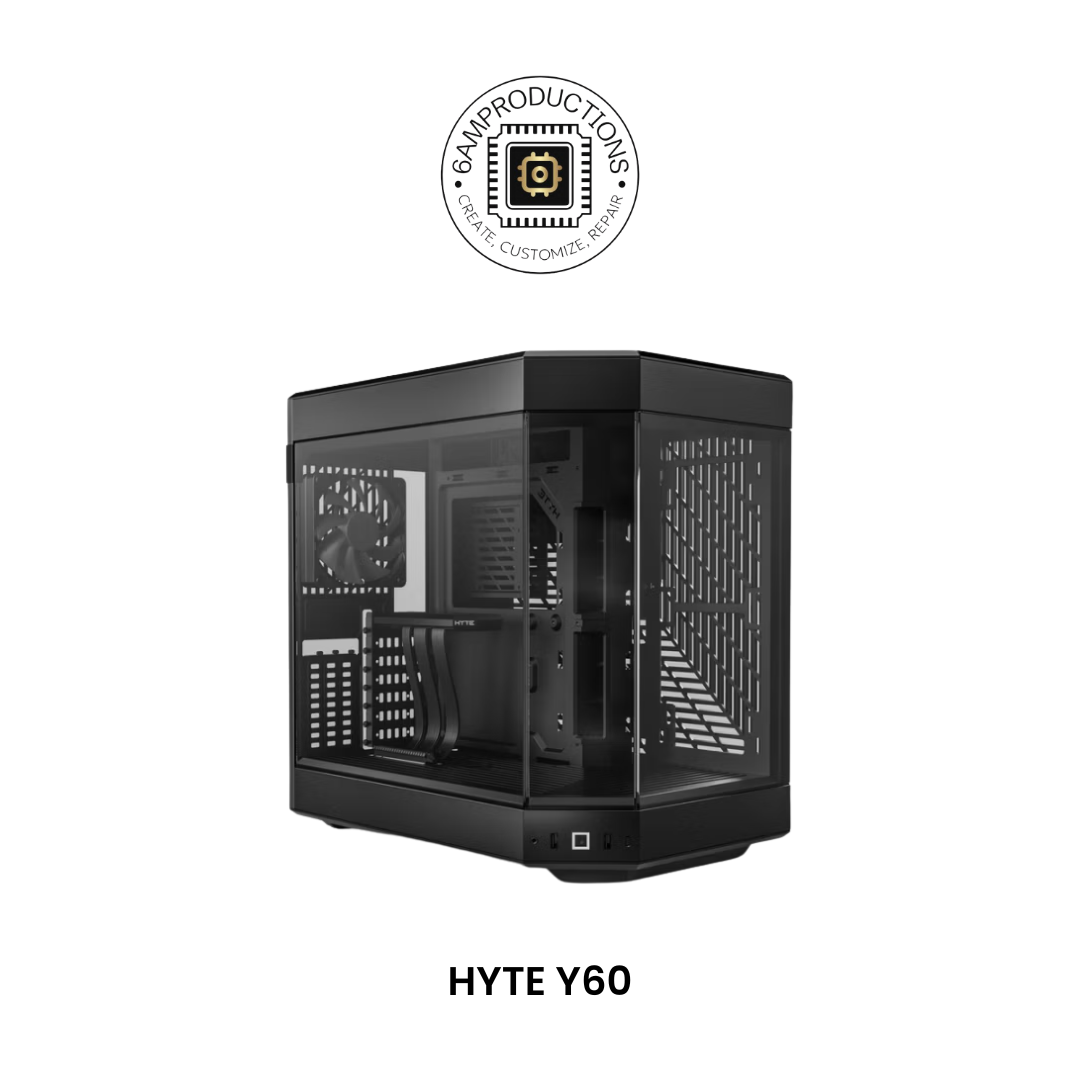

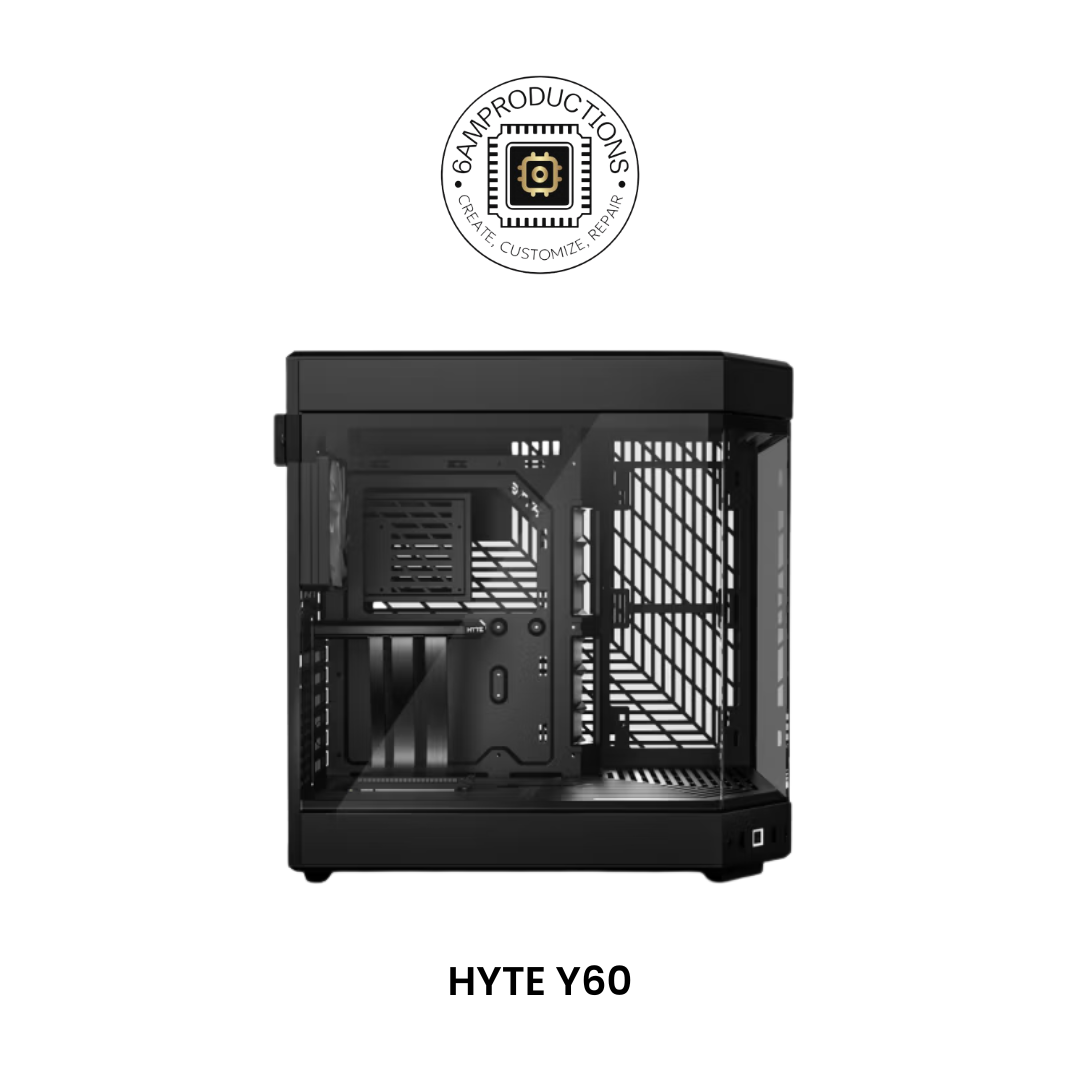

HYTE Y60

Key Specifications

Colourways: Pitch Black

Case Size: Dual-Chamber ATX Mid Tower (60 L)

Motherboard Support: Mini-ITX / Micro-ATX / ATX / E-ATX

Side Panel: Three-Piece Panoramic Tempered Glass

Expansion Slots: 3 full-height vertical slots / 7 half-height horizontal slots

Drive Bays: 2 × 3.5" HDD or 4 × 2.5" SSD

GPU Clearance: Up to 375 mm long / up to 75 mm thick; 60 mm or less recommended for best cooling

CPU Cooler Clearance: Up to 160 mm

PSU Clearance: ATX up to 235 mm

Fan Support: Top: 3 × 120 mm; Side: 2 × 120 mm / 2 × 140 mm; Bottom: 2 × 120 mm / 2 × 140 mm; Rear: 1 × 120 mm

Radiator Support: Top: 120 / 240 / 360 mm up to 30 mm thick; Side: 120 / 140 / 240 / 280 mm up to 150 mm thick; Rear: 120 mm

Front I/O: USB-C 3.2 Gen 2 × 1 / USB 3.0 × 2 / Headphone & Microphone Combo Jack

Dust Filters: Top / Side / Bottom

Dimensions & Weight: 456 × 285 × 462 mm (L × W × H); 9.6 kg

Additional Information

Pre-installed Fans: Bottom: 2 × 120 mm Flow FE12 fans / Rear: 1 × 120 mm Flow FE12 fan

Airflow / Build Design: Dual-chamber layout with concealed bottom intake and no corner pillar; for air-cooled builds, HYTE recommends two additional side-intake fans (not included)

Cable Management: Separate rear chamber keeps cables away from the main display area

Rear-Connector Support: Not specified by HYTE

Special Features: Included PCIe 4.0 ×16 riser cable / Exclusively vertical GPU mounting / Three-piece panoramic view

WARRANTY: 3 YEARS
