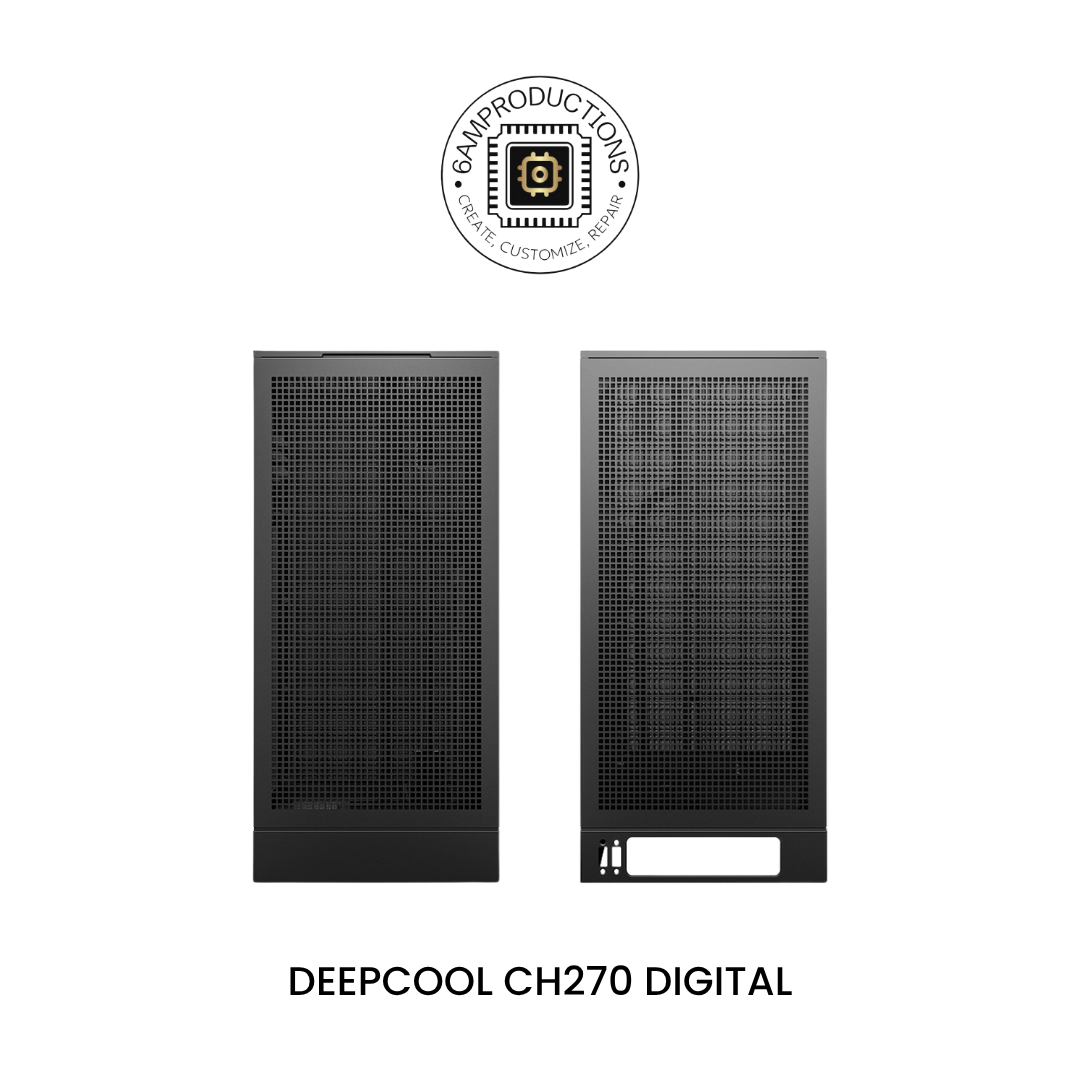

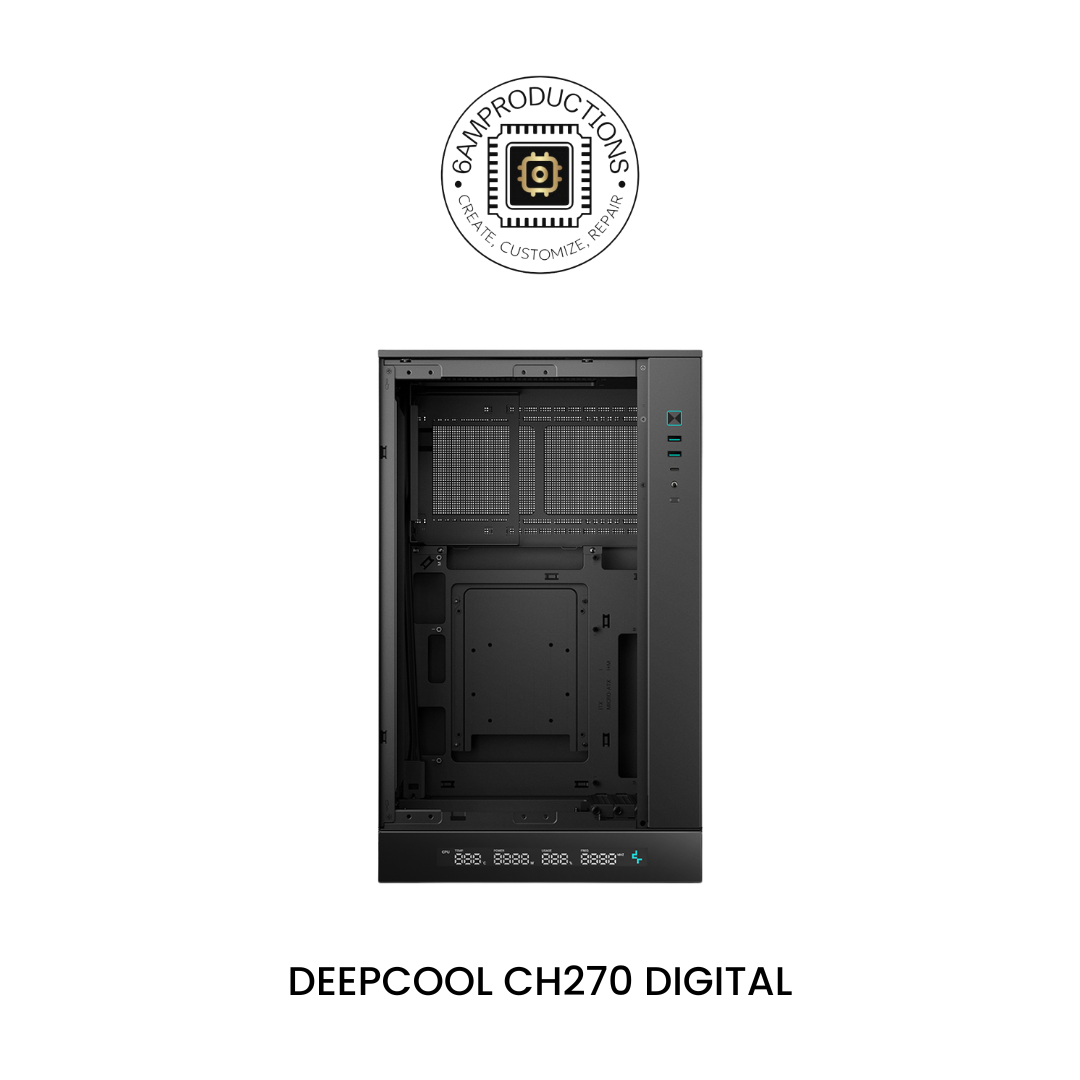

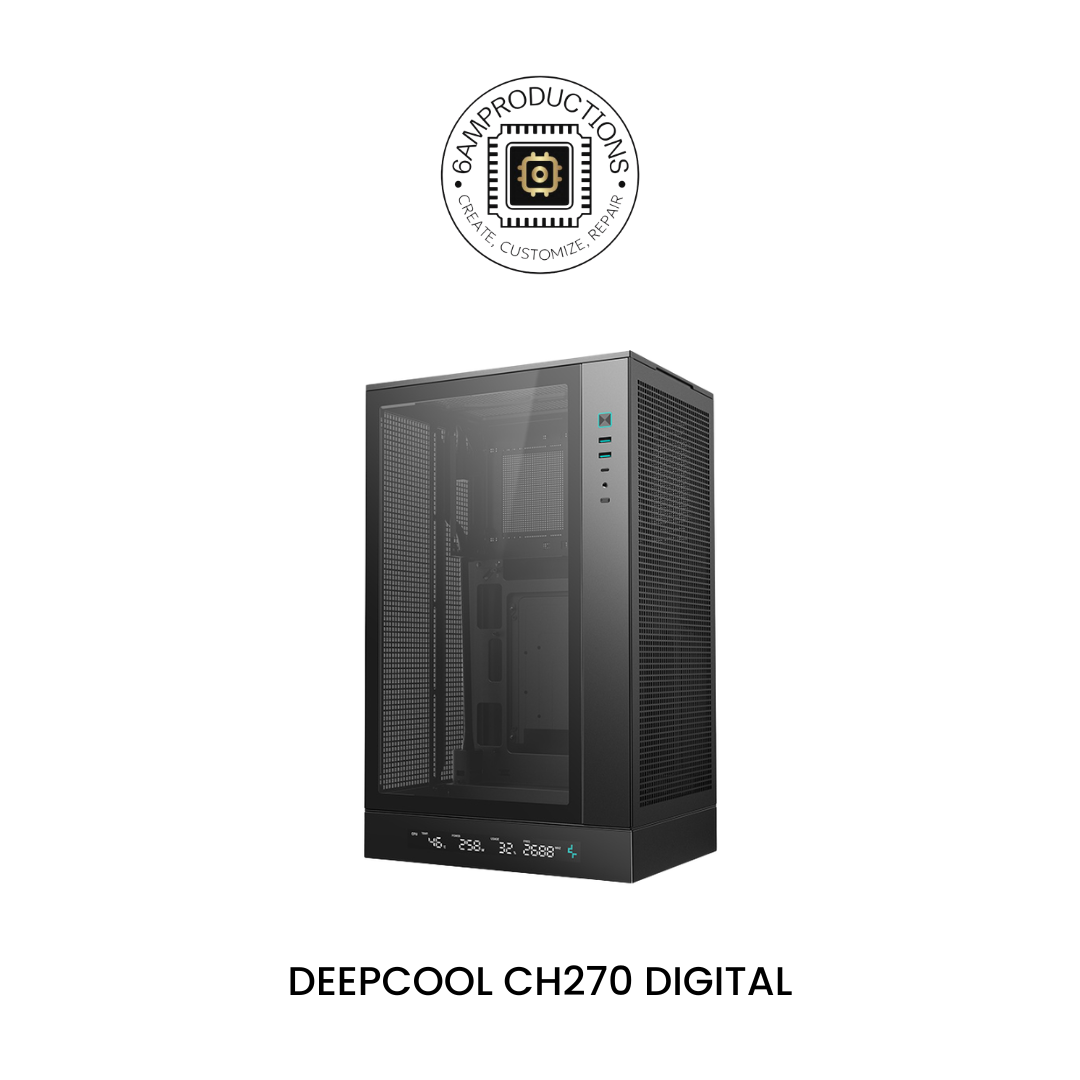

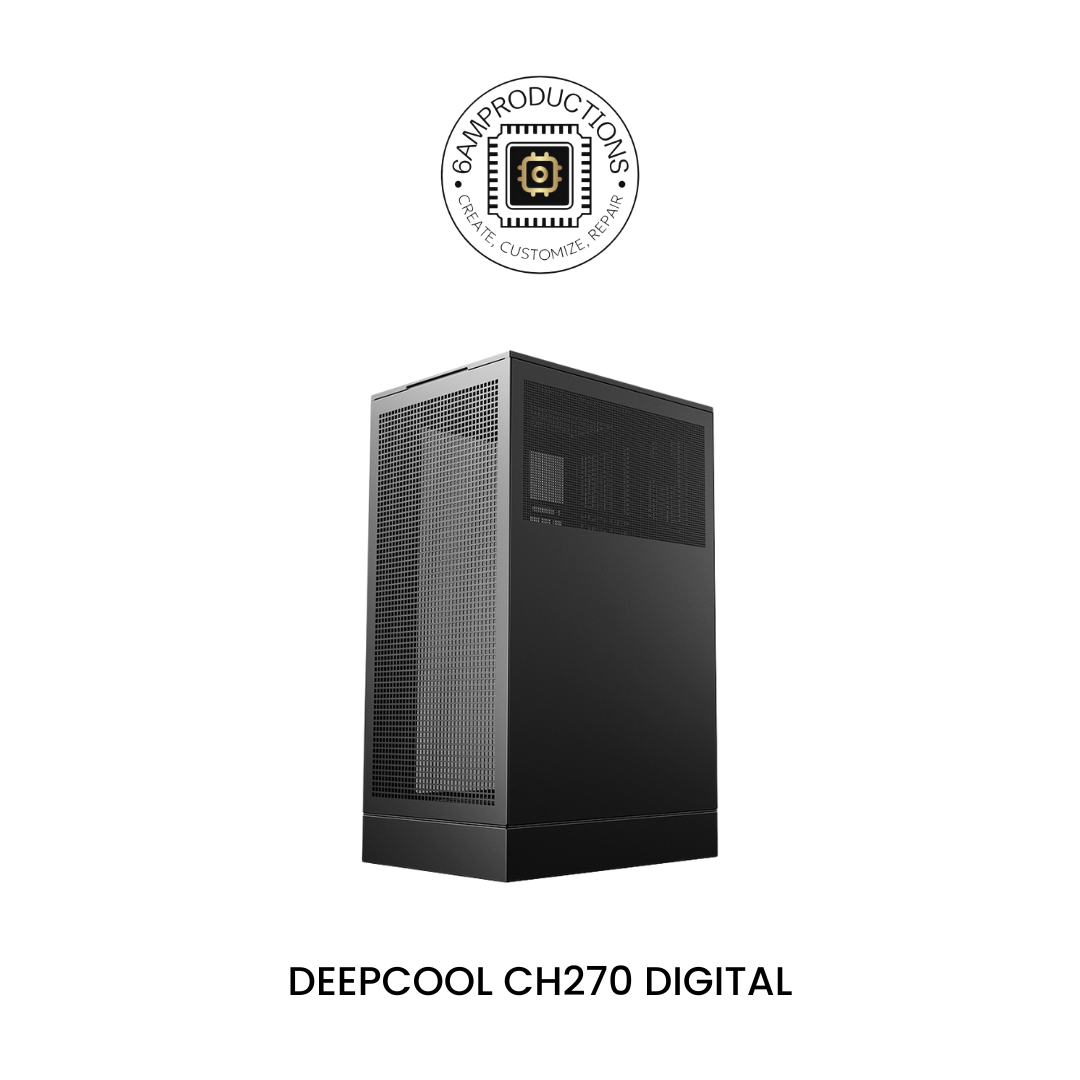

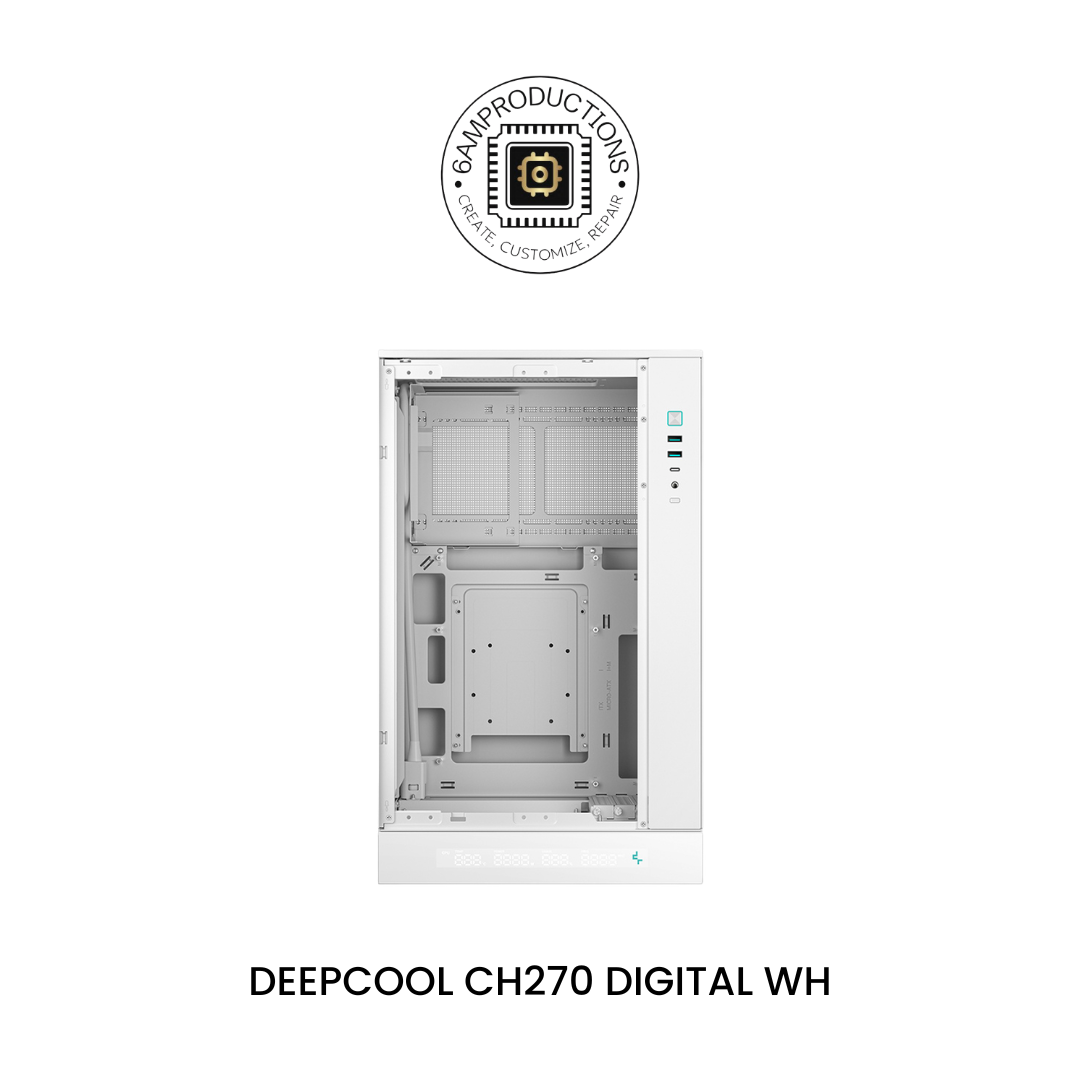

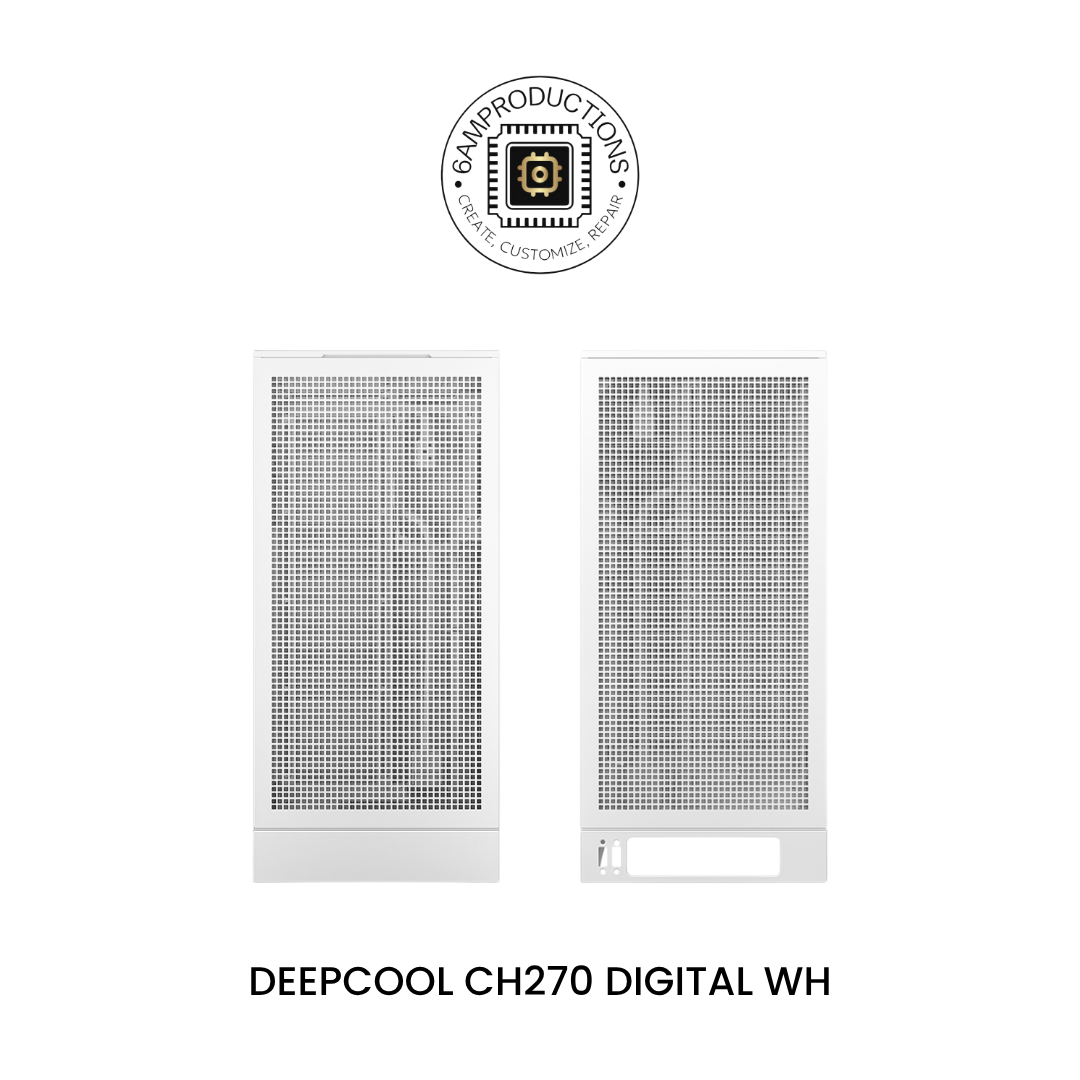

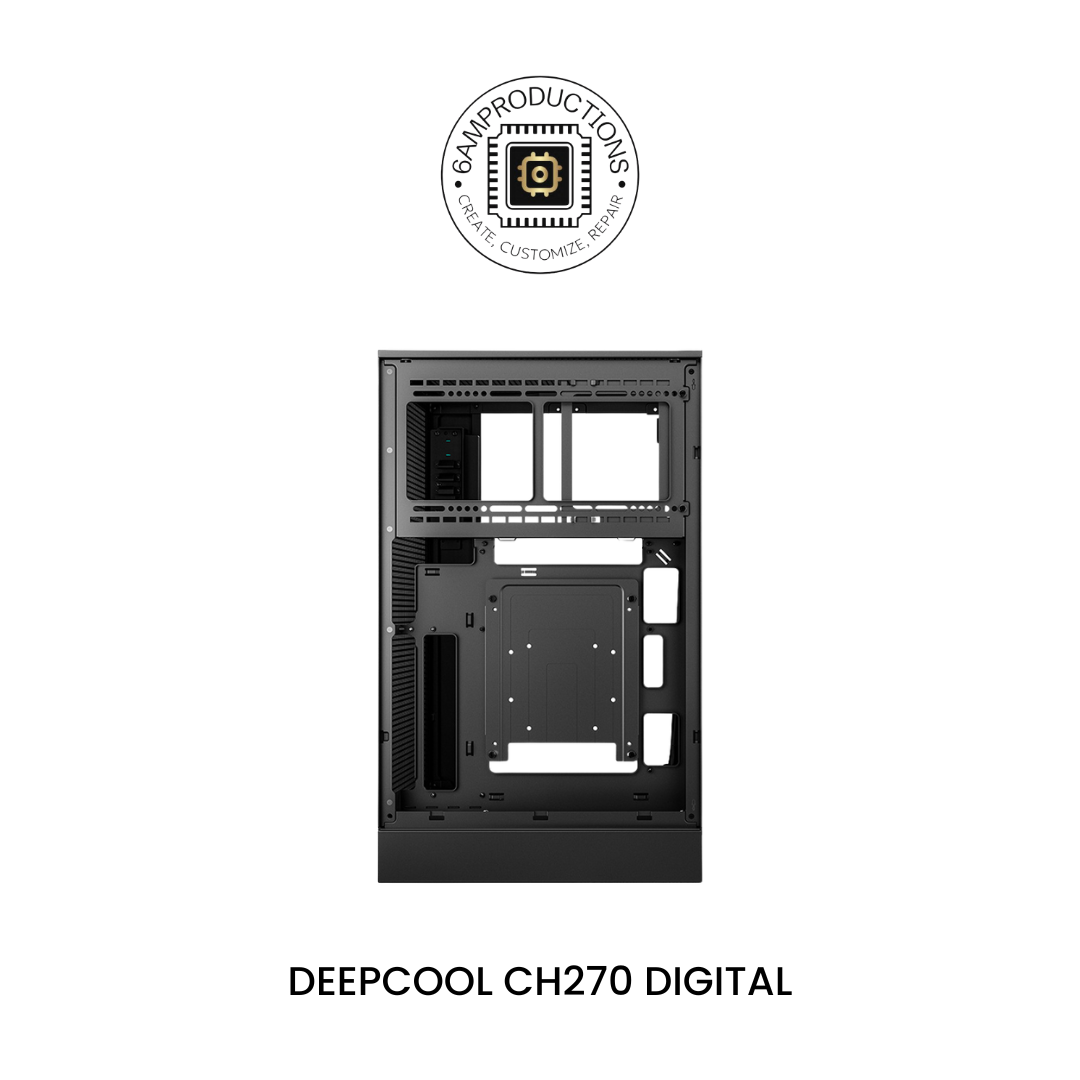

DeepCool CH270 DIGITAL

Key Specifications

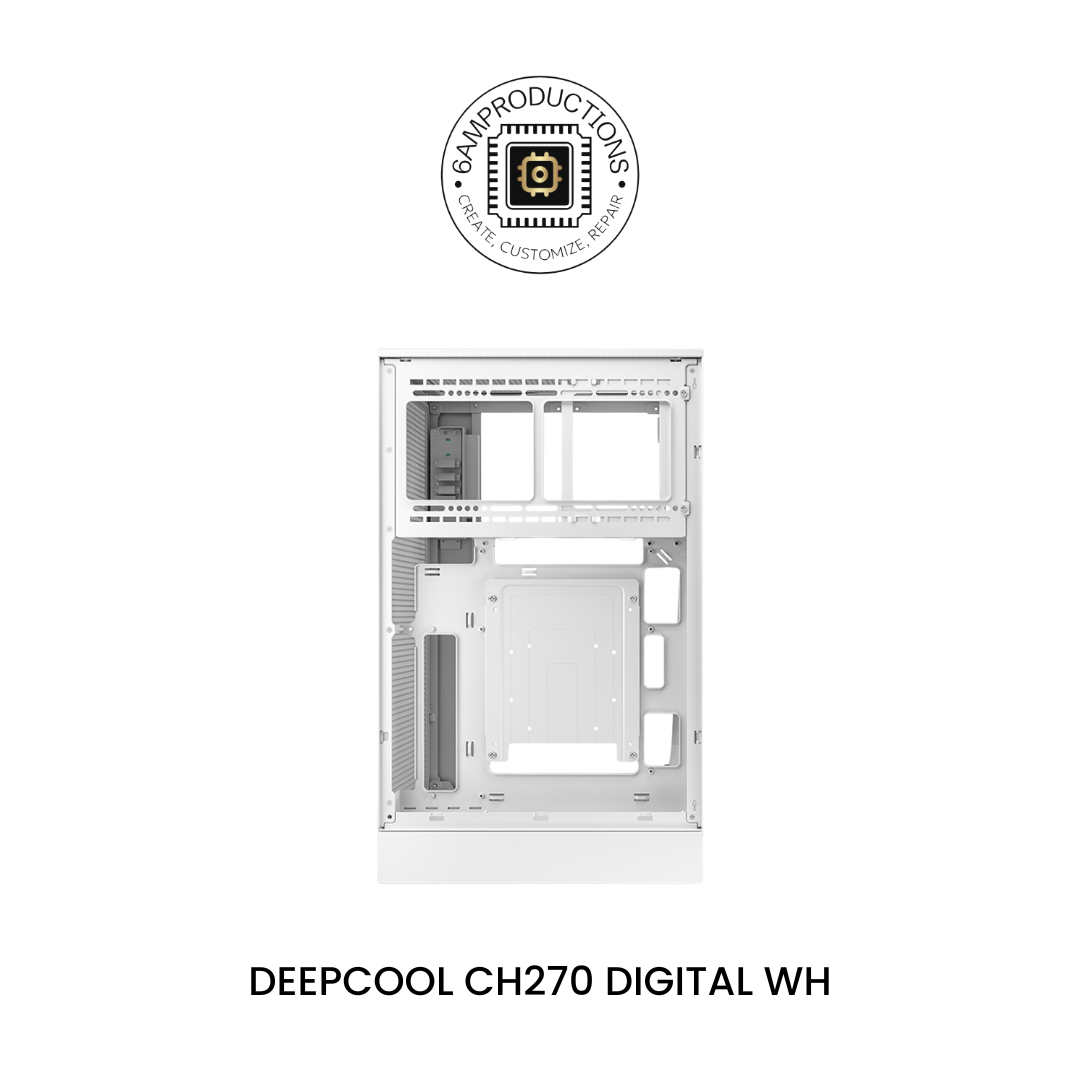

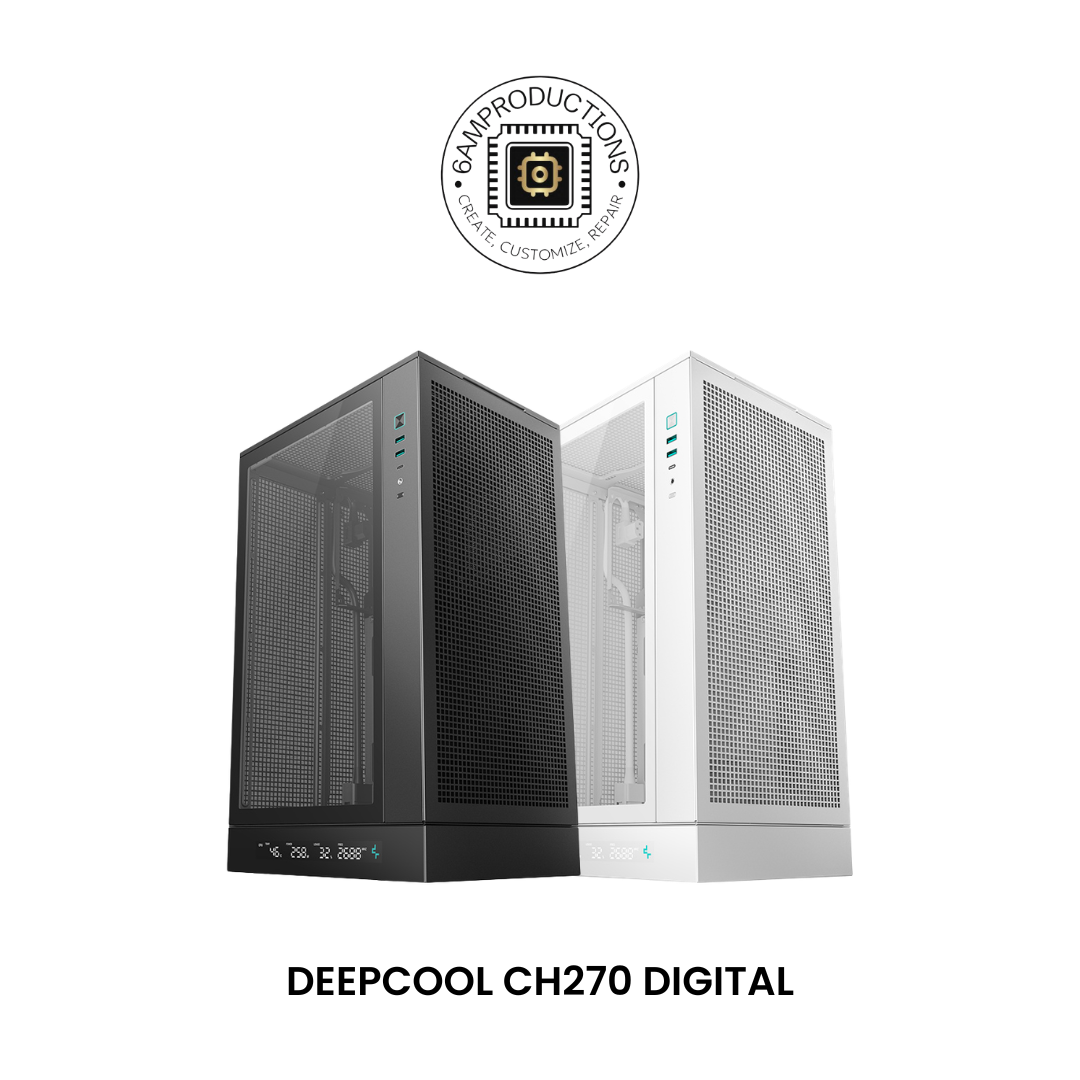

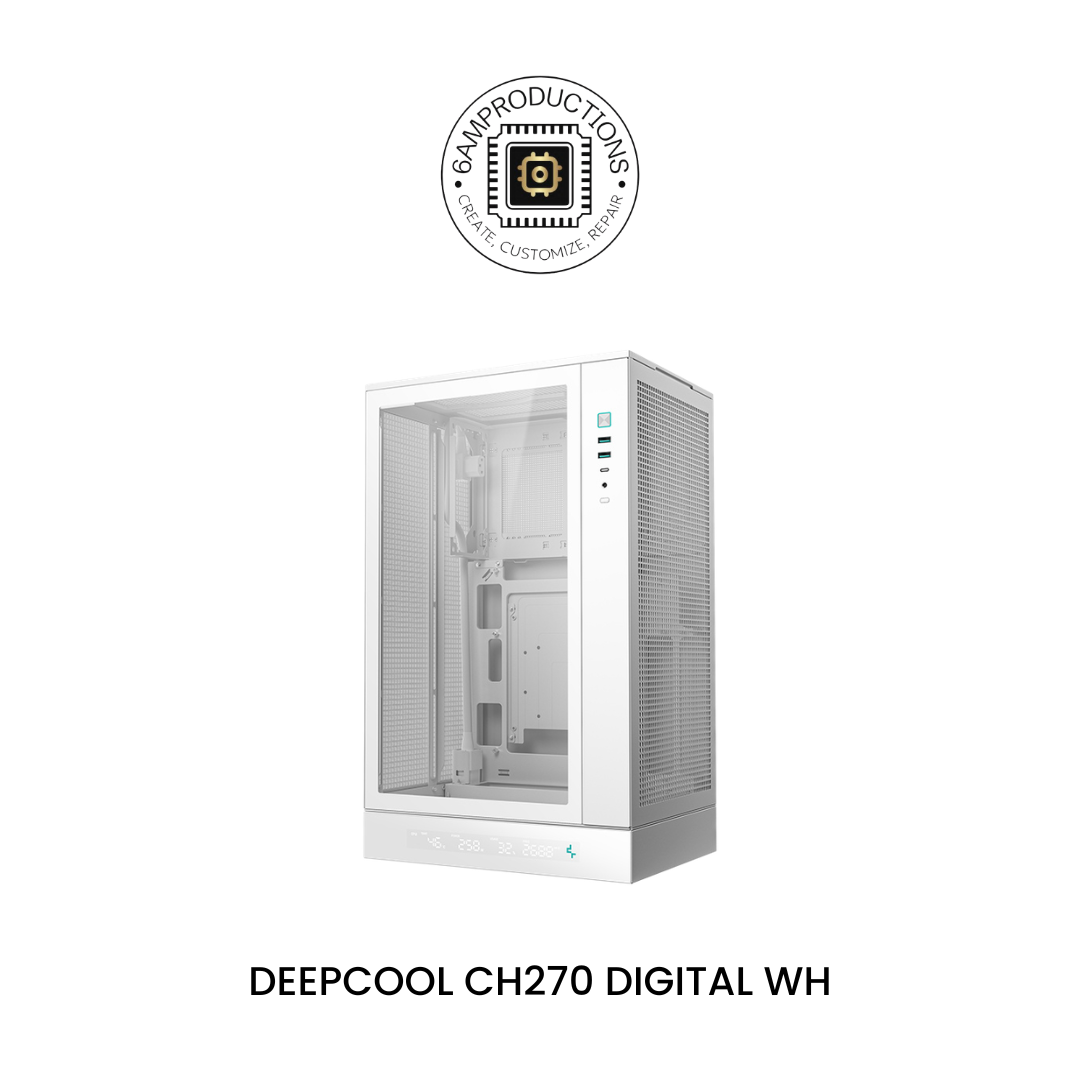

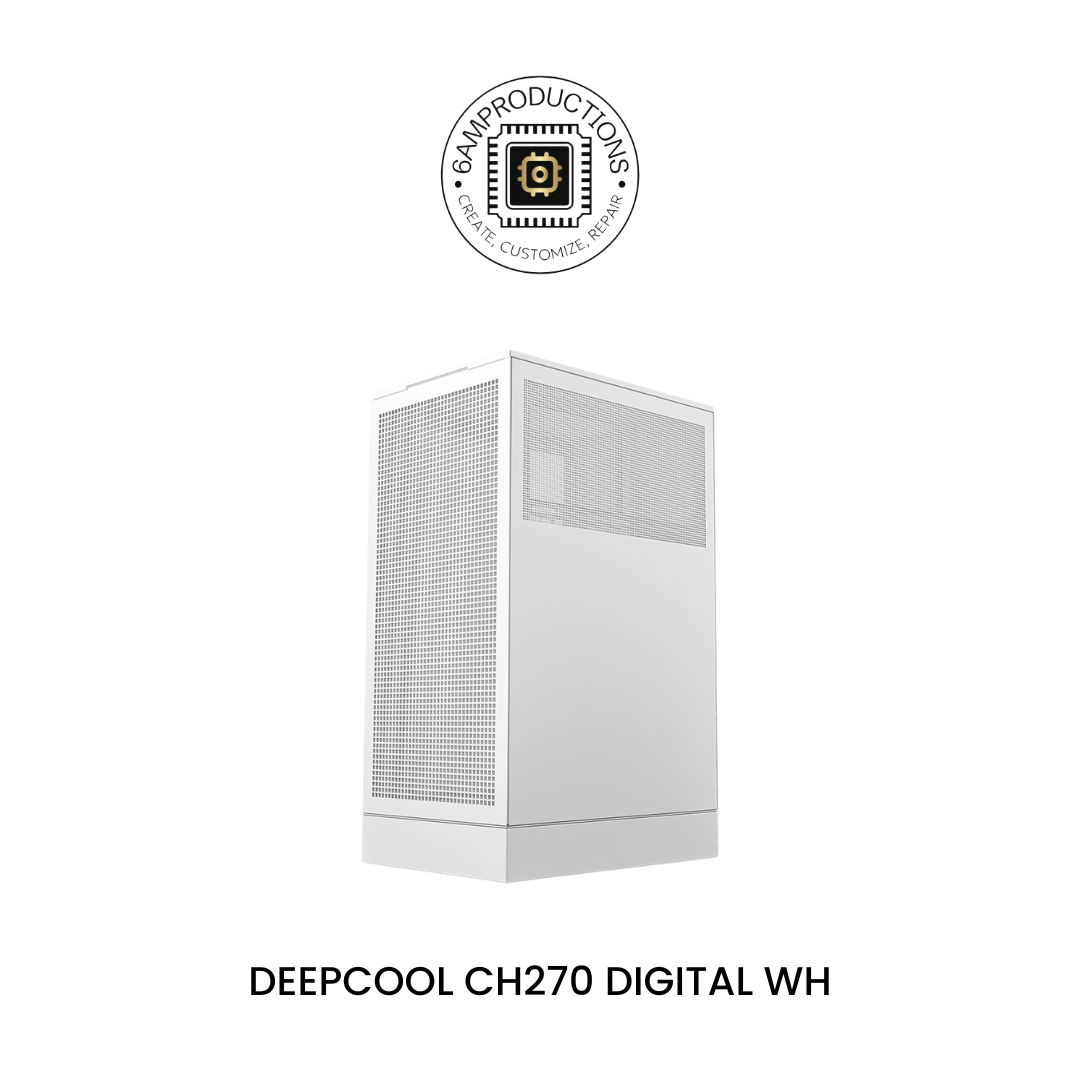

Colourways: Black / White

Case Size: Vertical compact Micro-ATX case

Motherboard Support: Mini-ITX / Micro-ATX; rear-connector Micro-ATX

Side Panel: Tempered glass

Expansion Slots: 4

Drive Bays: 1 × 3.5-inch HDD / 1 × 2.5-inch SSD

GPU Clearance: Up to 388 mm with top fans; up to 413 mm without top fans

CPU Cooler Clearance: Up to 174 mm

PSU Clearance: ATX up to 150 mm

Fan Support: Top: 2 × 120 mm; side: 3 × 120 mm or 2 × 140 mm; bottom: 1 × 120 mm

Radiator Support: Side: 120 / 240 / 360 mm; bottom: 120 mm

Front I/O: 2 × USB 3.0; 1 × USB-C Gen 2; audio/mic combo jack

Dust Filters: Four removable filters

Dimensions & Weight: 296 × 225 × 486 mm (L × W × H); 5.8 kg

Additional Information

Pre-installed Fans: None

Airflow / Build Design: Vertical chassis with extensive filtered ventilation

Cable Management: Dedicated routing space; exact clearance is not specified by DeepCool

Rear-Connector Support: Micro-ATX rear-connector motherboards

Special Features: Integrated CPU, GPU and PSU status display; DeepCool Setup software is required for monitoring

WARRANTY: 1 YEAR
