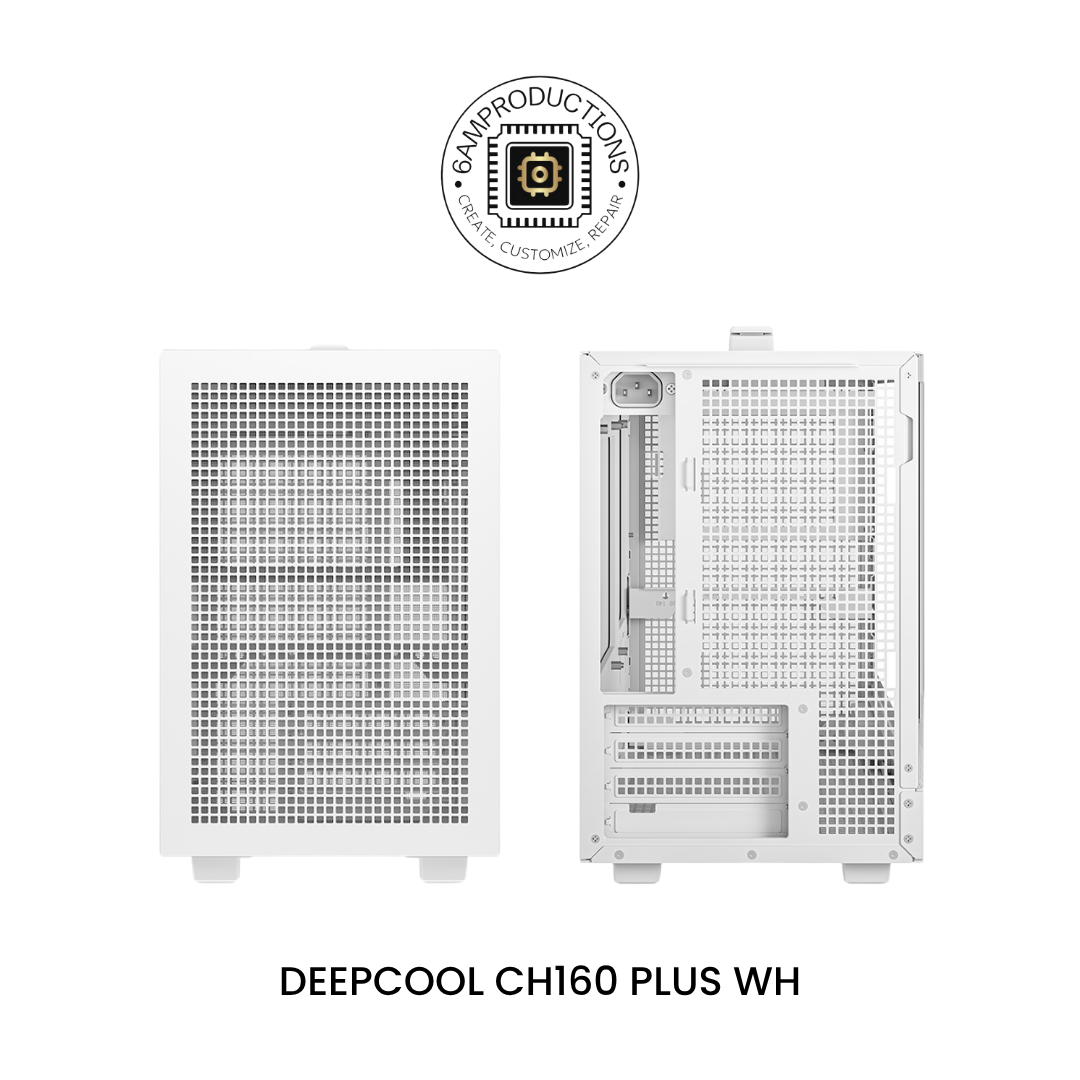

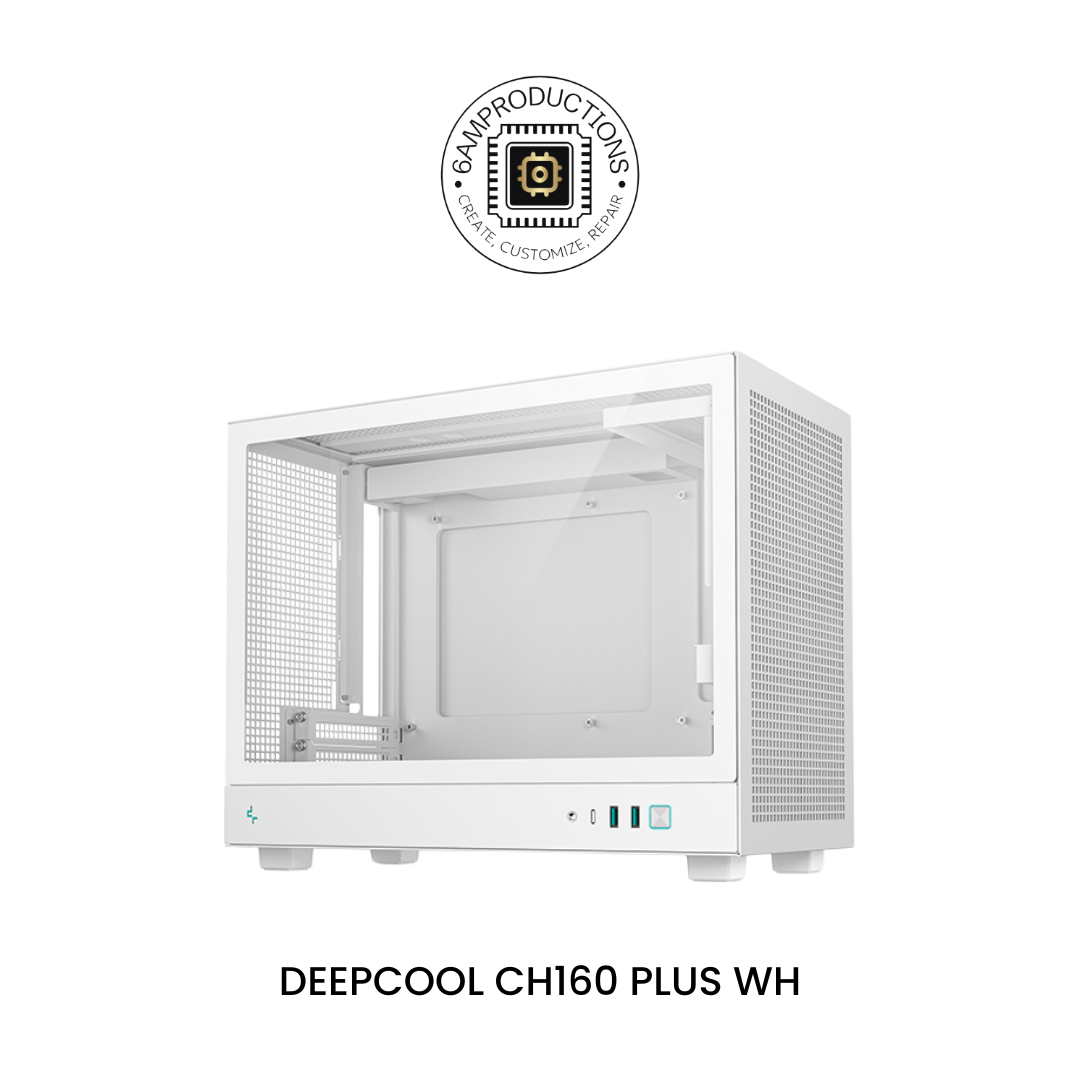

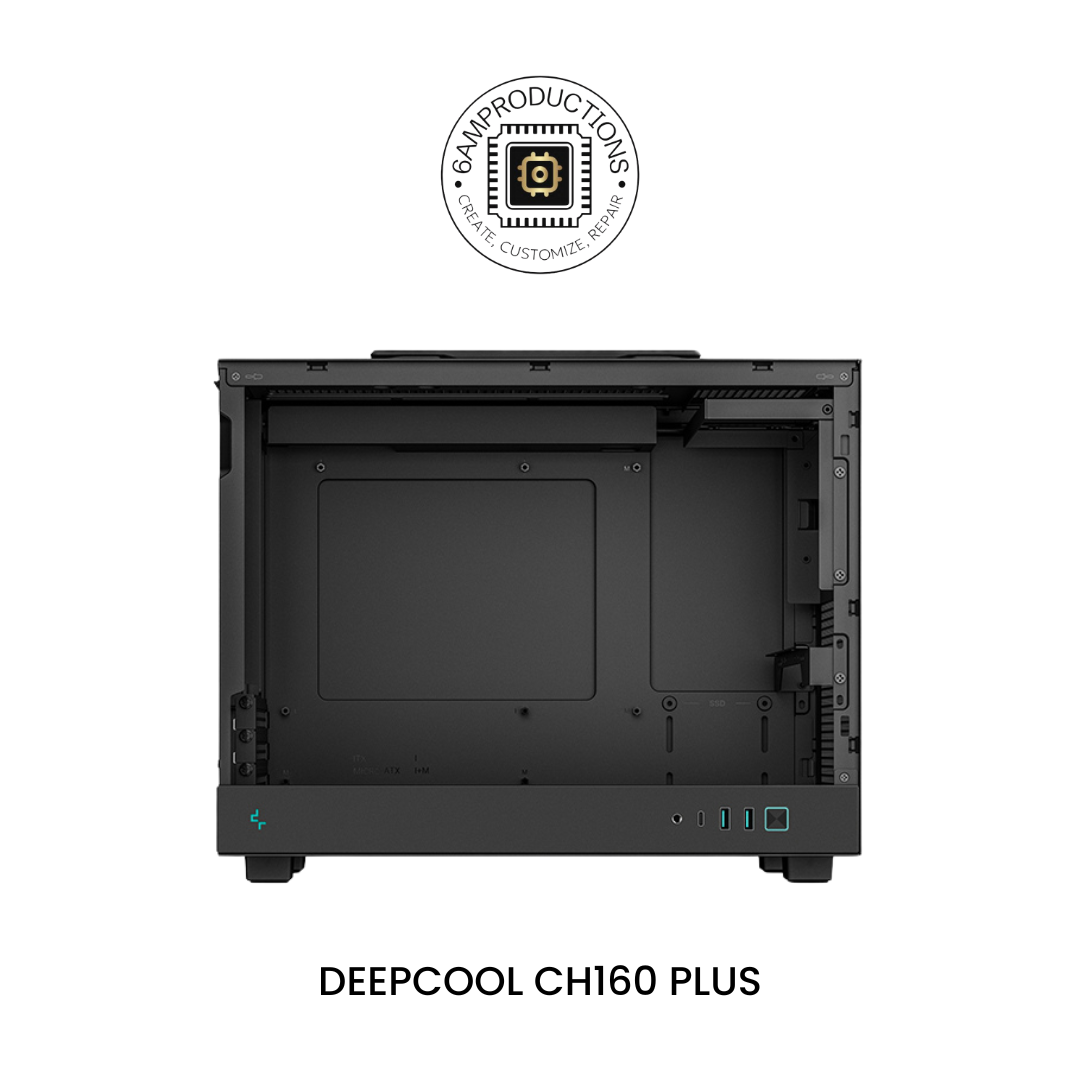

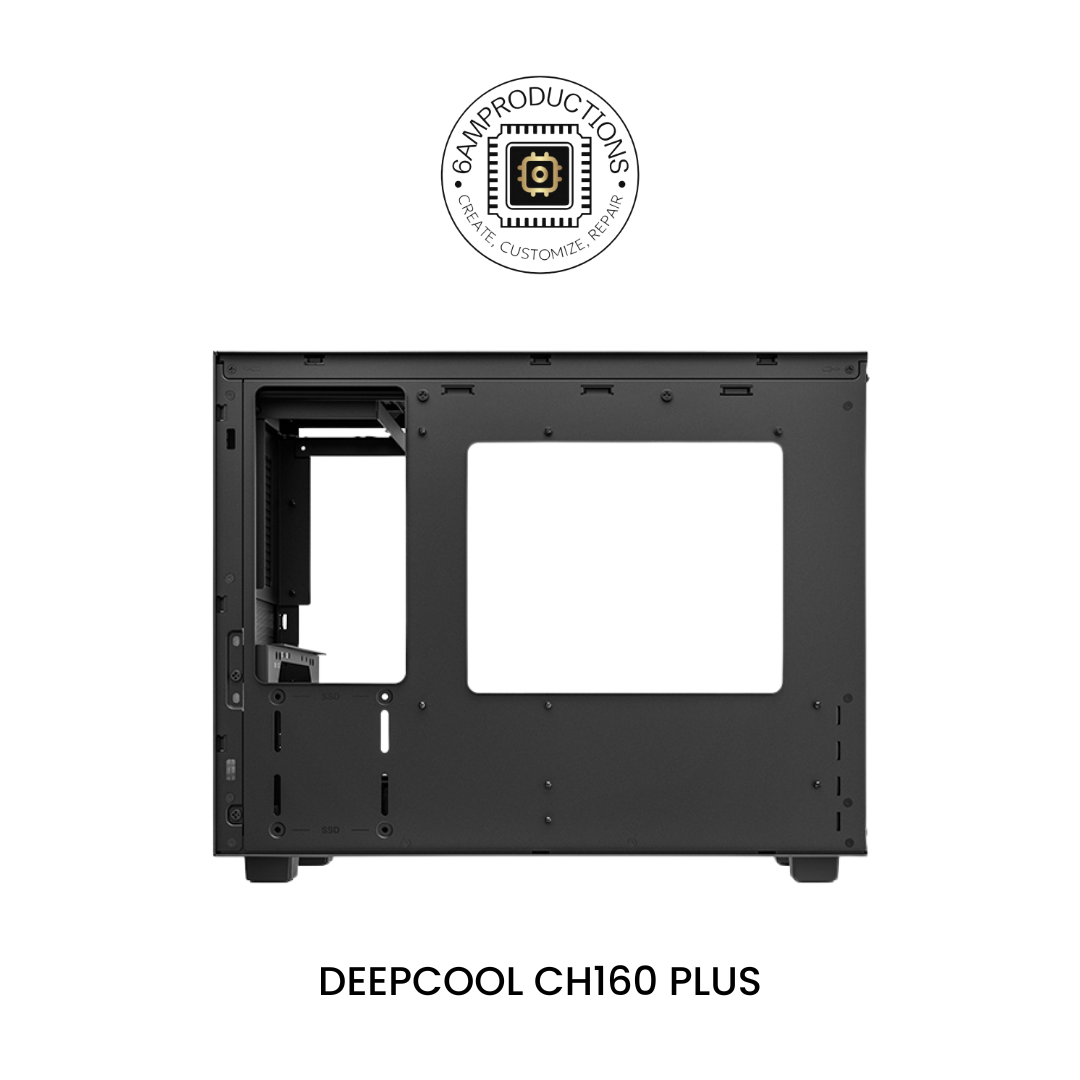

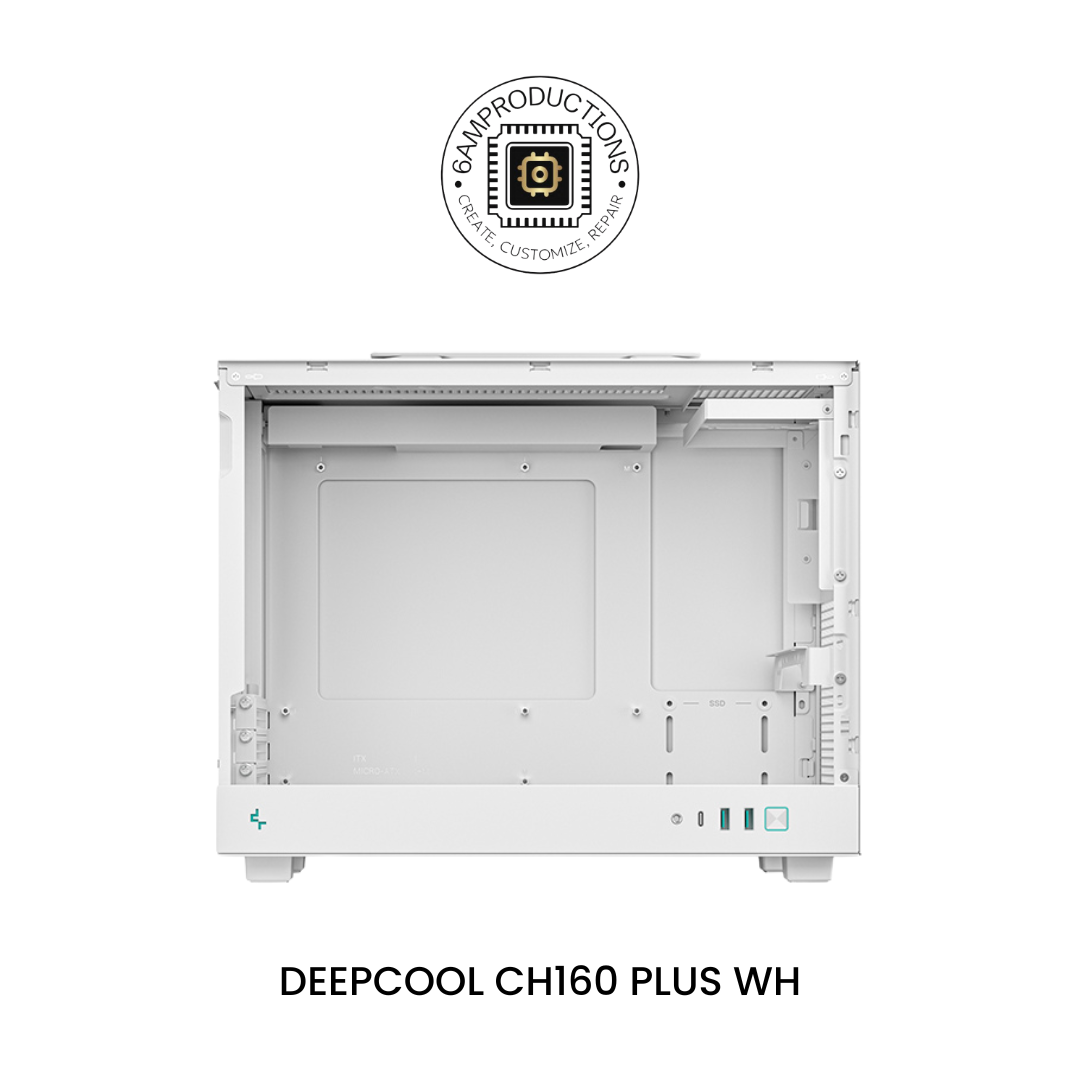

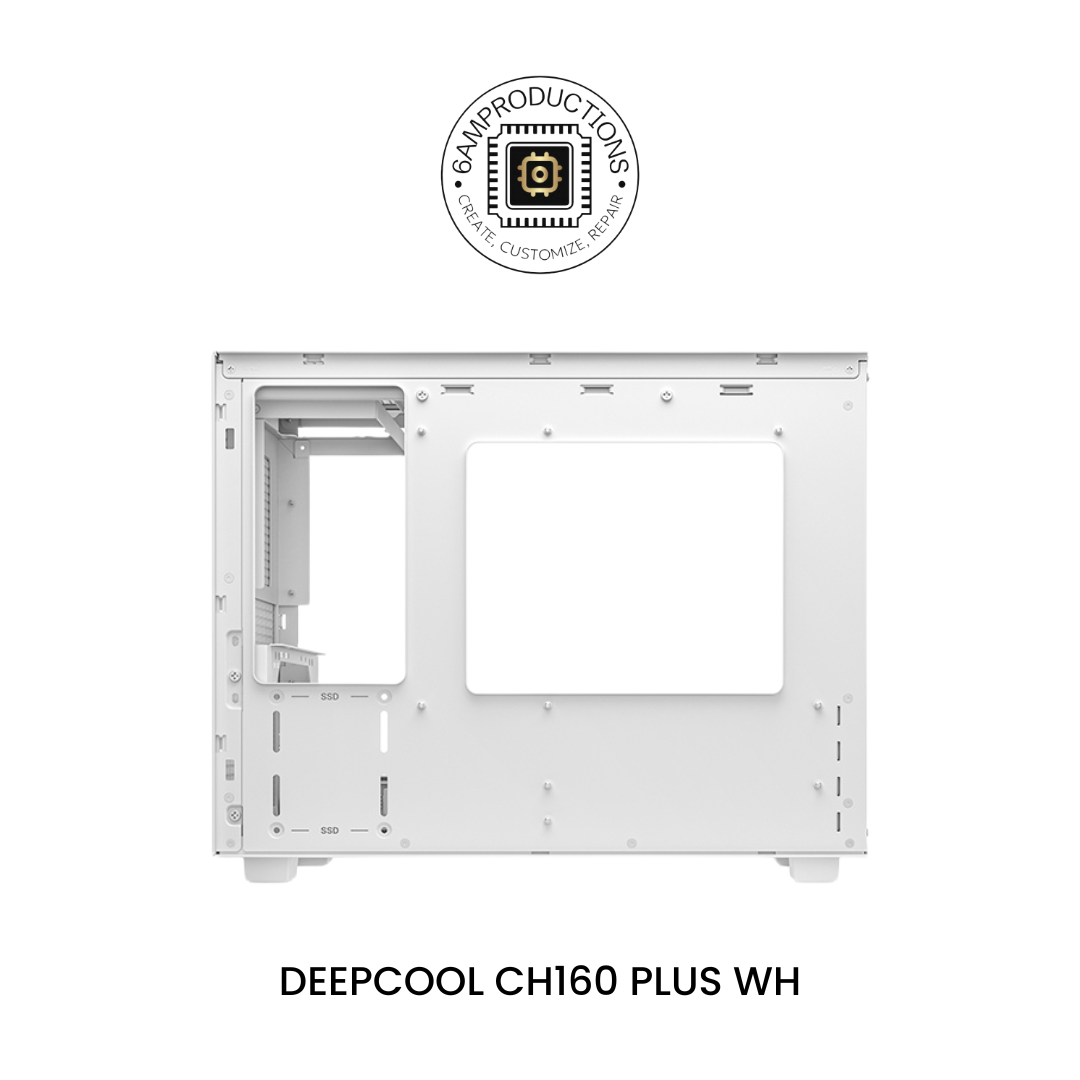

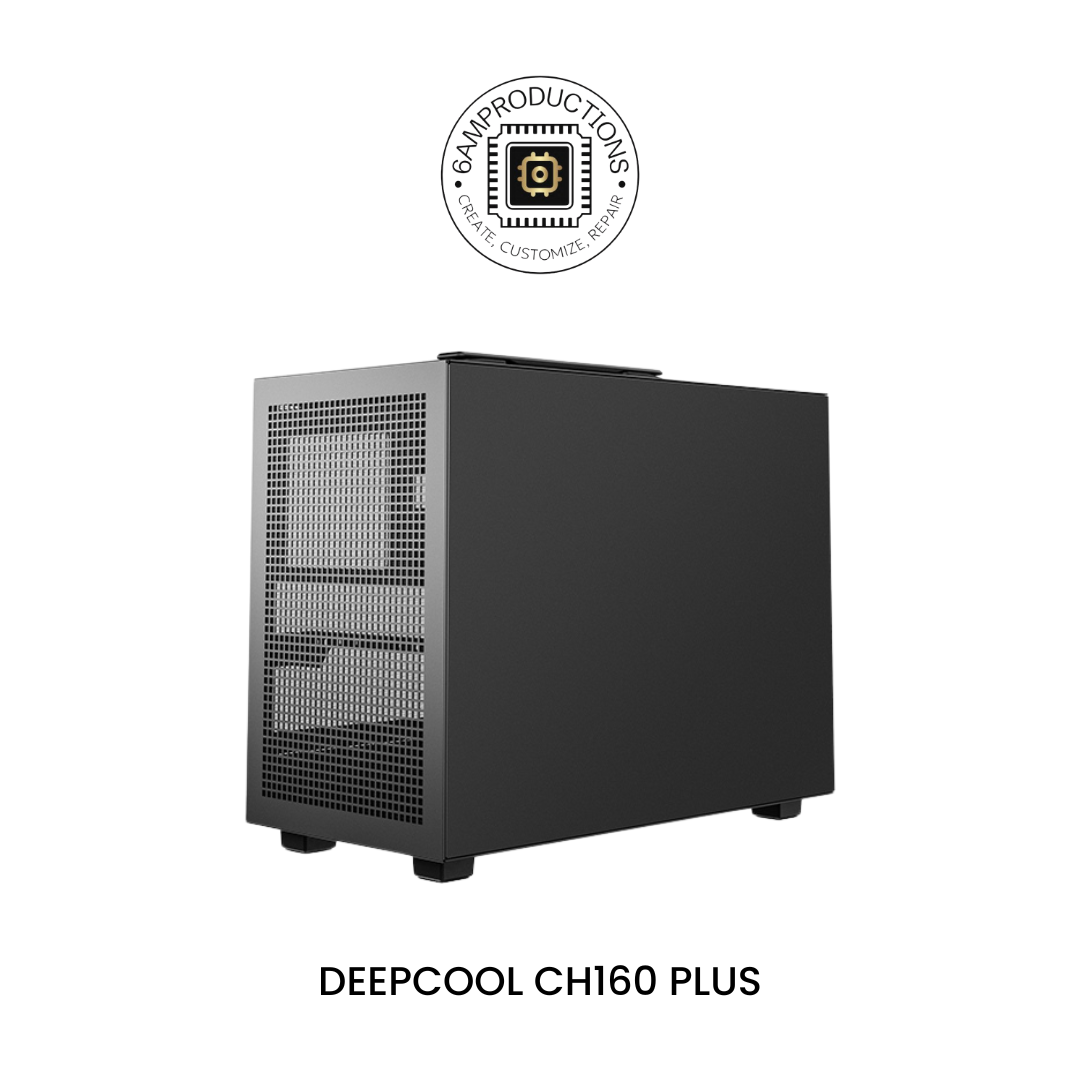

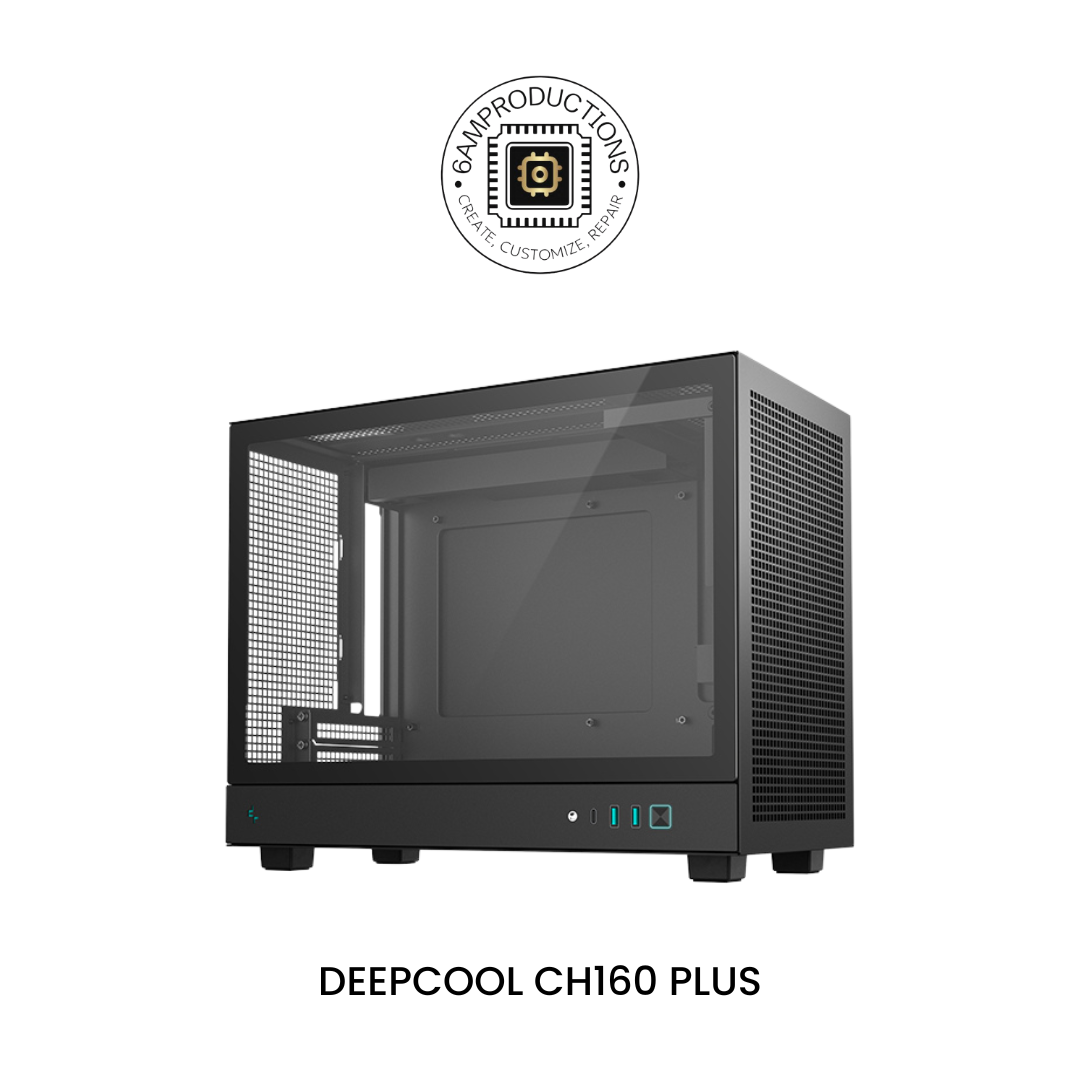

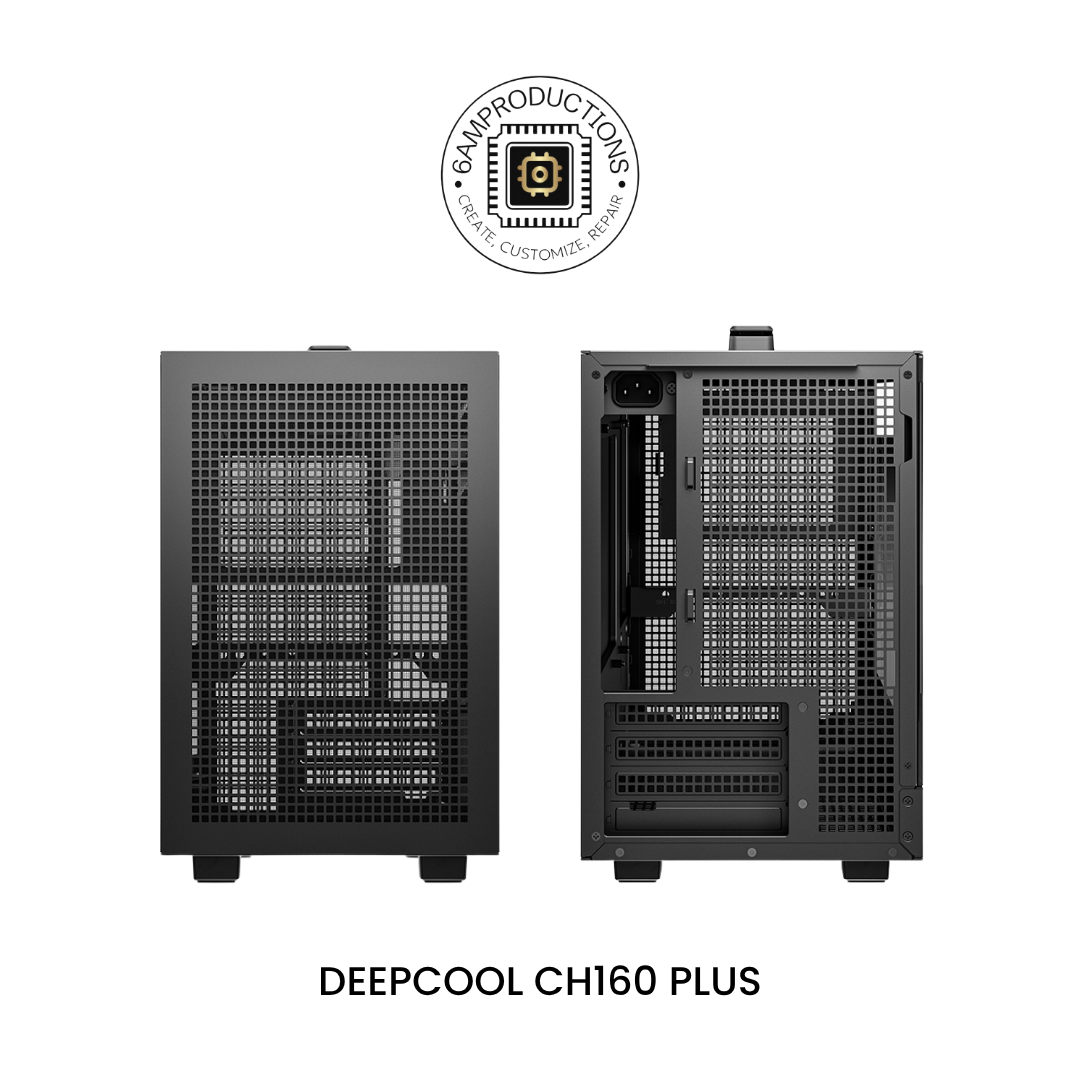

DeepCool CH160 PLUS

Key Specifications

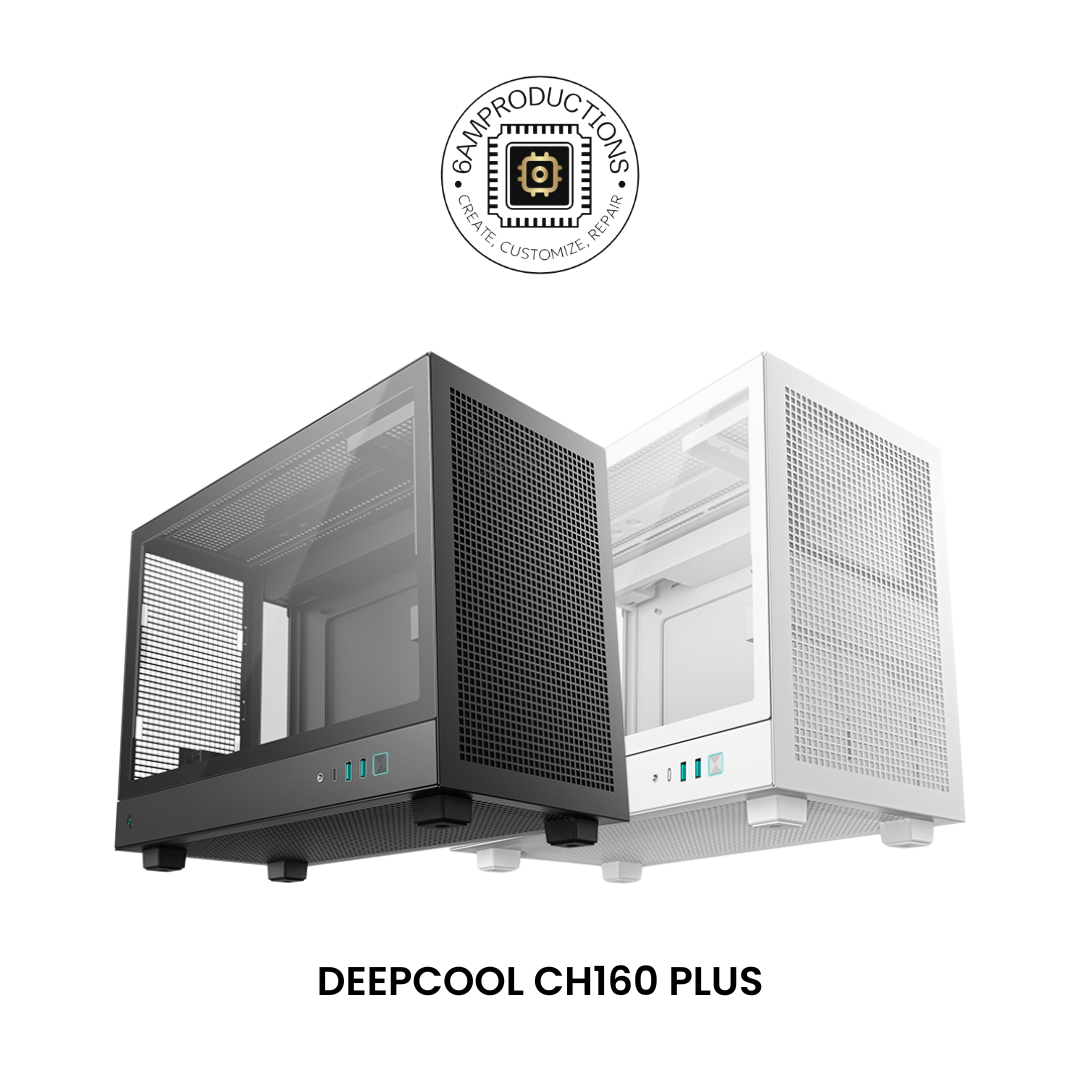

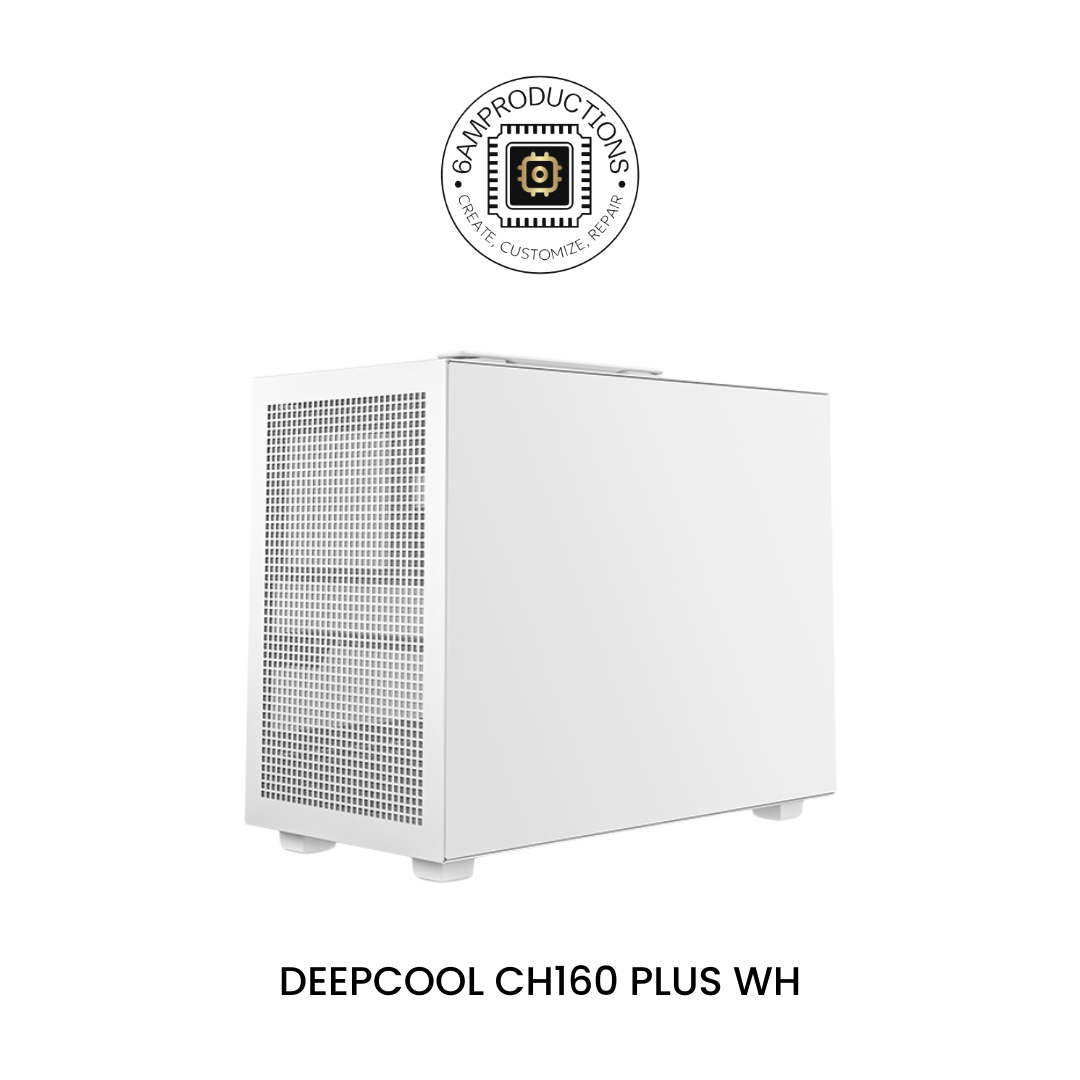

Colourways: Black / White

Case Size: Compact Micro-ATX Case

Motherboard Support: Mini-ITX / Micro-ATX

Side Panel: Tempered Glass

Expansion Slots: 4 PCIe slots

Drive Bays: 1 × 3.5" HDD / up to 2 × 2.5" SSD

GPU Clearance: Up to 342 mm / up to 328 mm with a front fan installed

CPU Cooler Clearance: Up to 164 mm

PSU Clearance: ATX up to 140 mm / SFX / SFX-L

Fan Support: Front: 1 × 120 mm / 1 × 140 mm with an SFX PSU; Top: 2 × 120 mm; Rear: 1 × 120 mm

Radiator Support: Top: 120 / 240 mm; Rear: 120 mm

Front I/O: USB-C 3.2 Gen 2 × 1 / USB 3.0 × 2 / Headphone & Microphone Combo Jack

Dust Filters: Three-sided dust-filter coverage

Dimensions & Weight: 375 × 195 × 323.5 mm (L × W × H); 4.2 kg

Additional Information

Pre-installed Fans: None

Airflow / Build Design: Mesh-wrapped compact chassis with top and rear exhaust support

Cable Management: Not specified by DeepCool

Rear-Connector Support: Not specified by DeepCool

Special Features: Integrated carrying handle / Optional DeepCool PIXEL accessories

WARRANTY: 1 YEAR
