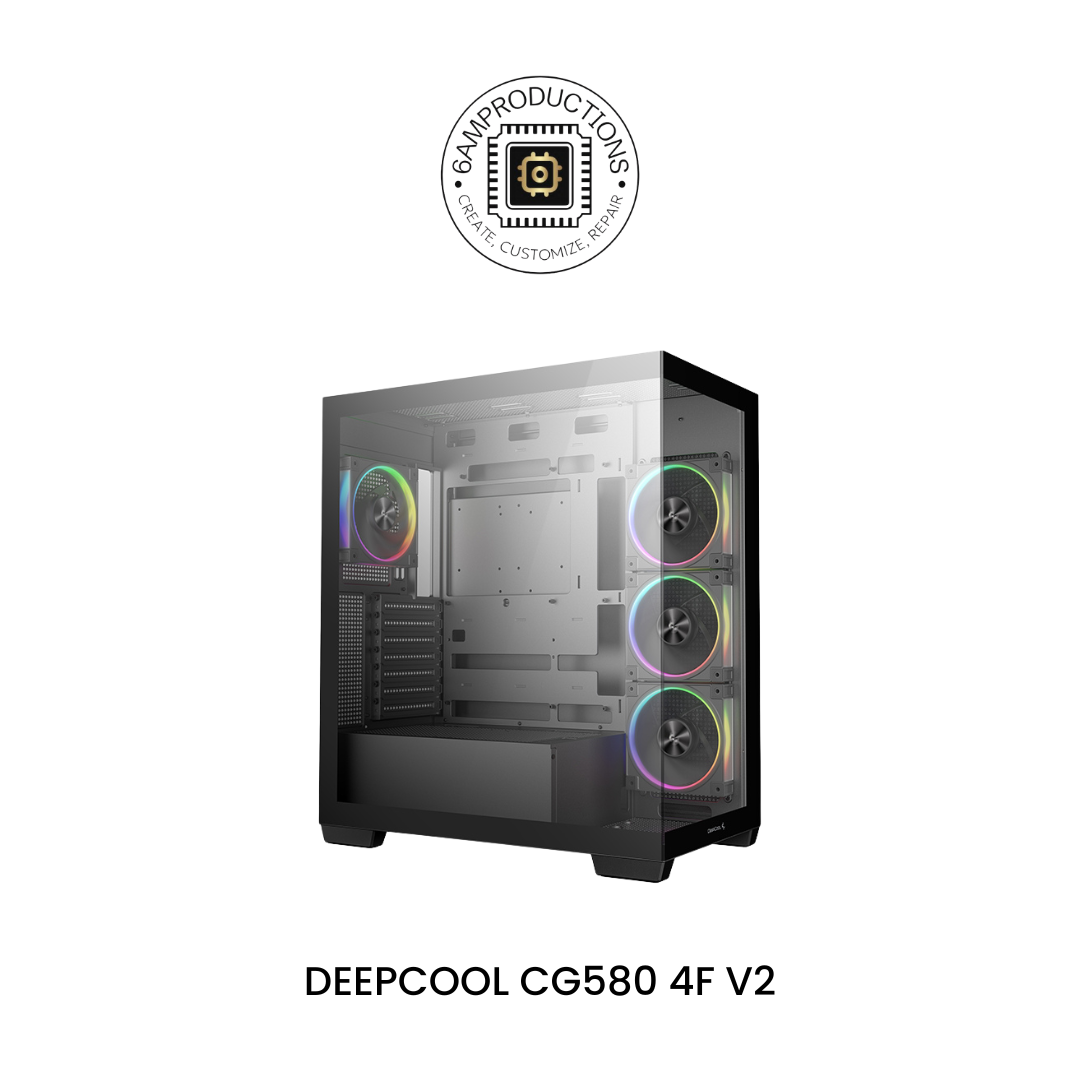

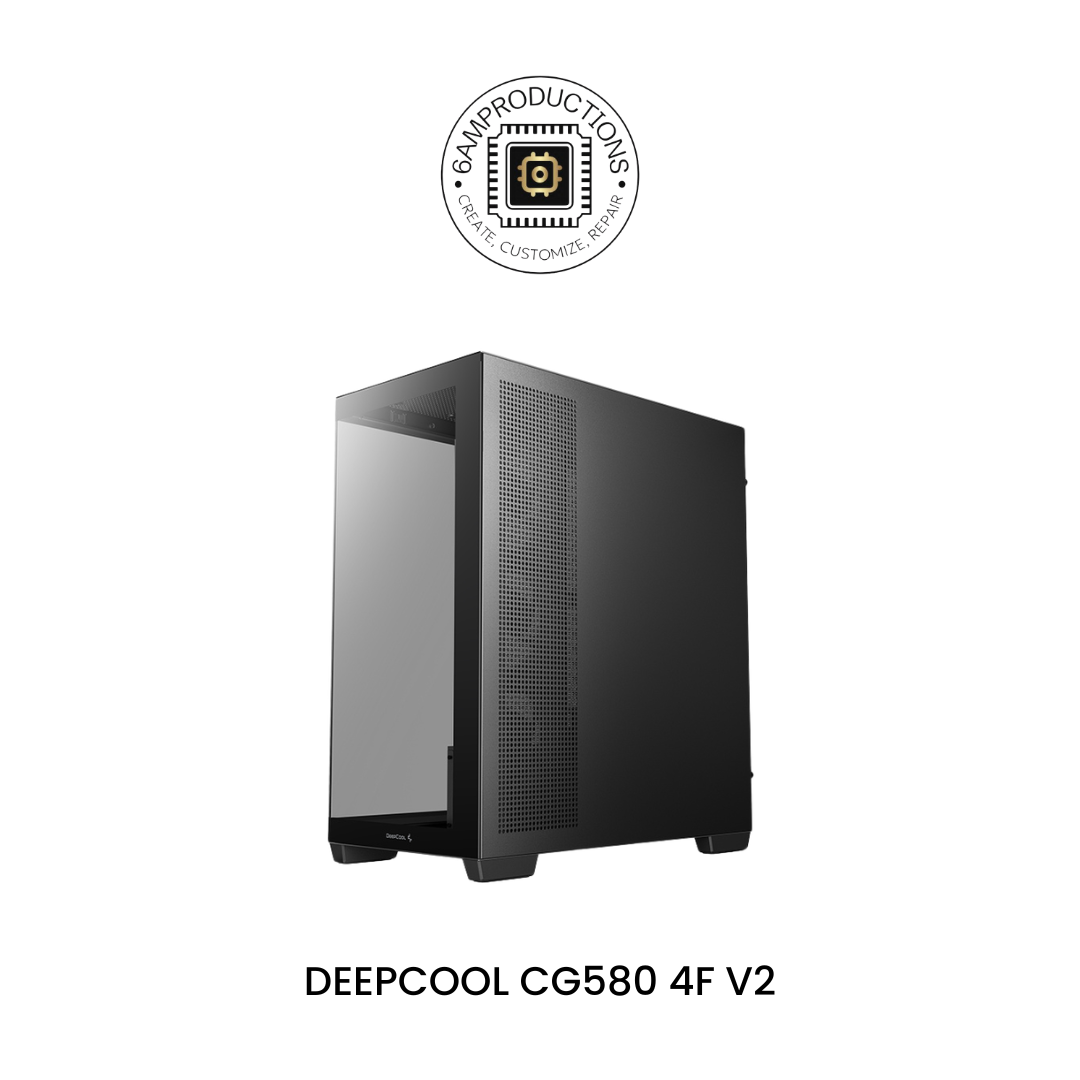

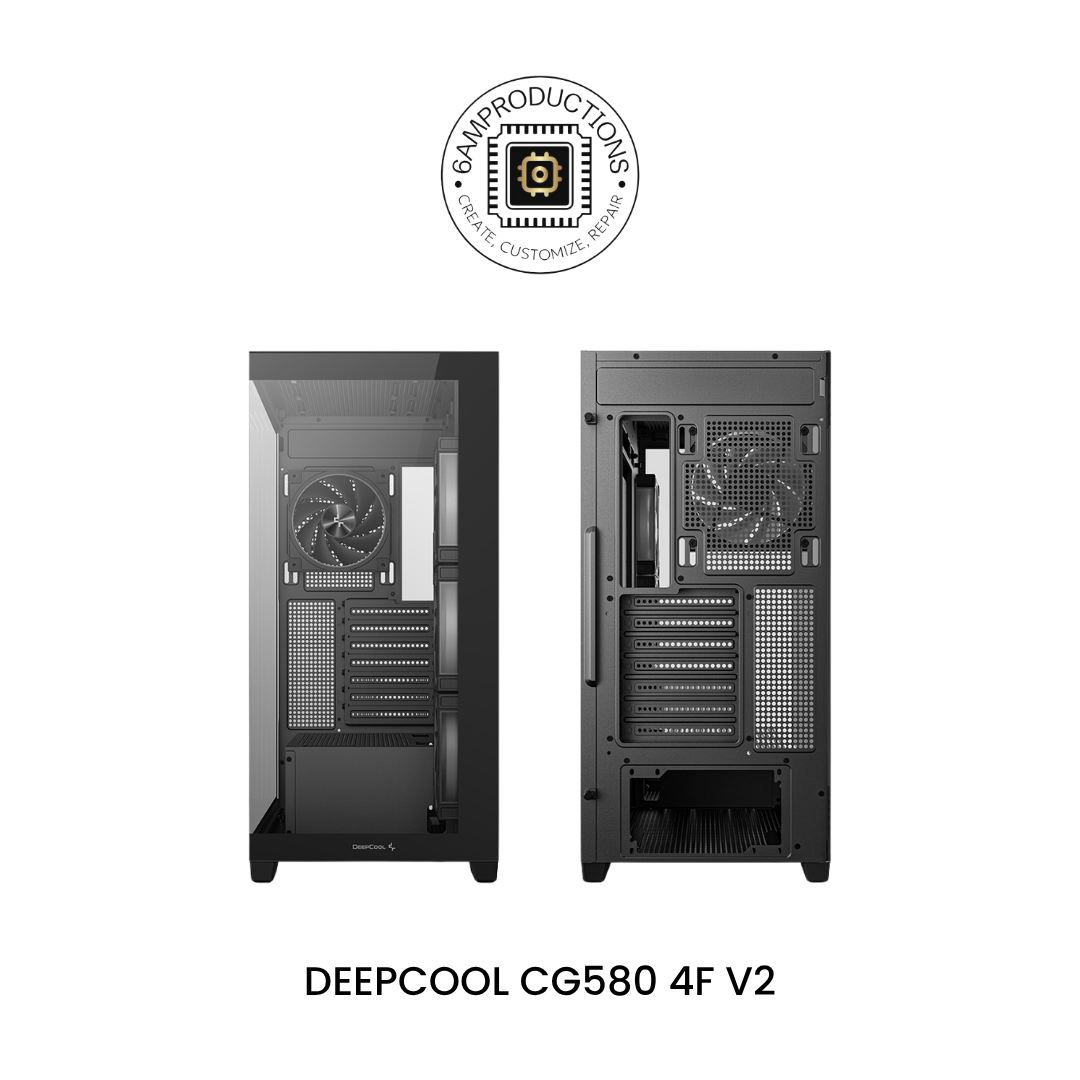

DeepCool CG580 4F V2

Key Specifications

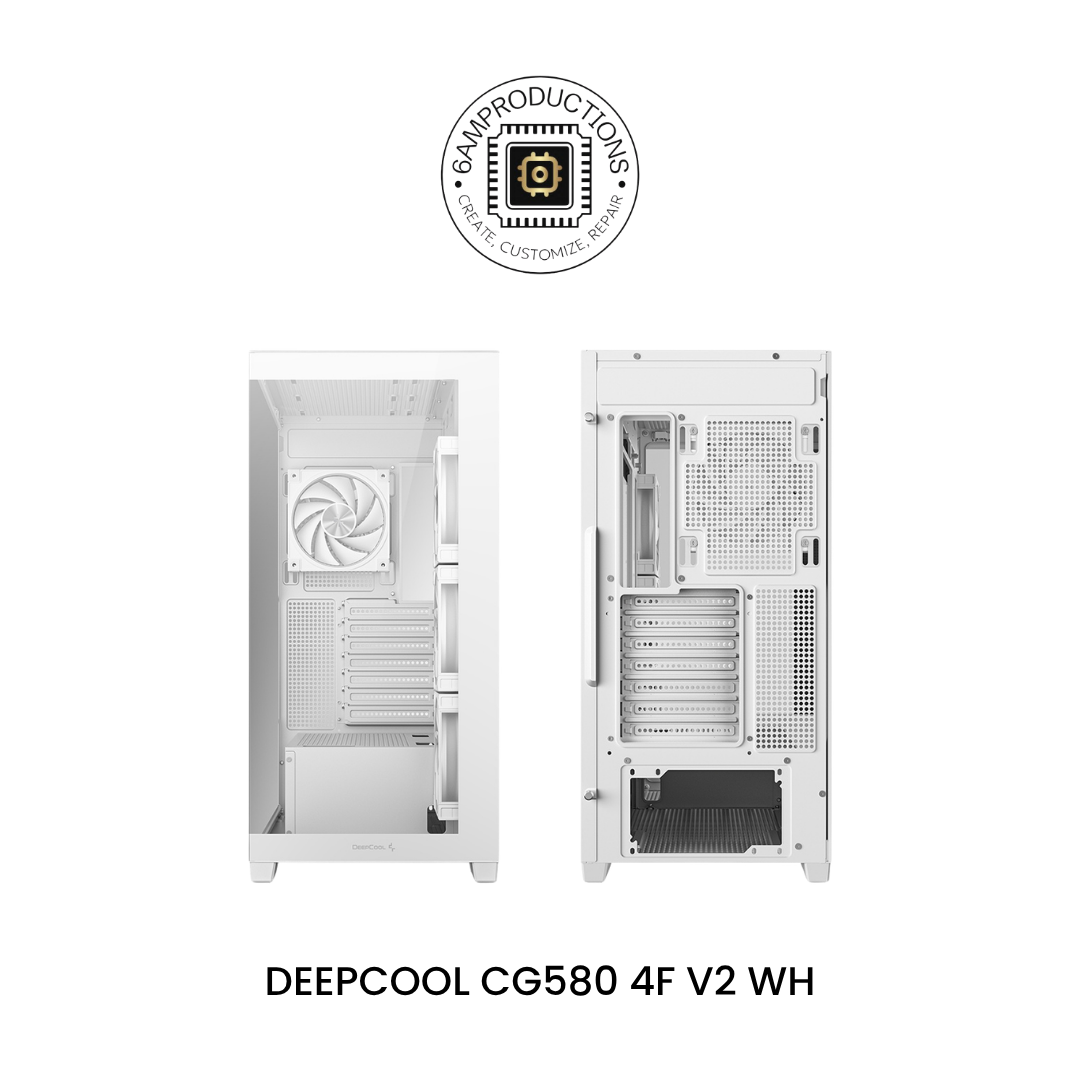

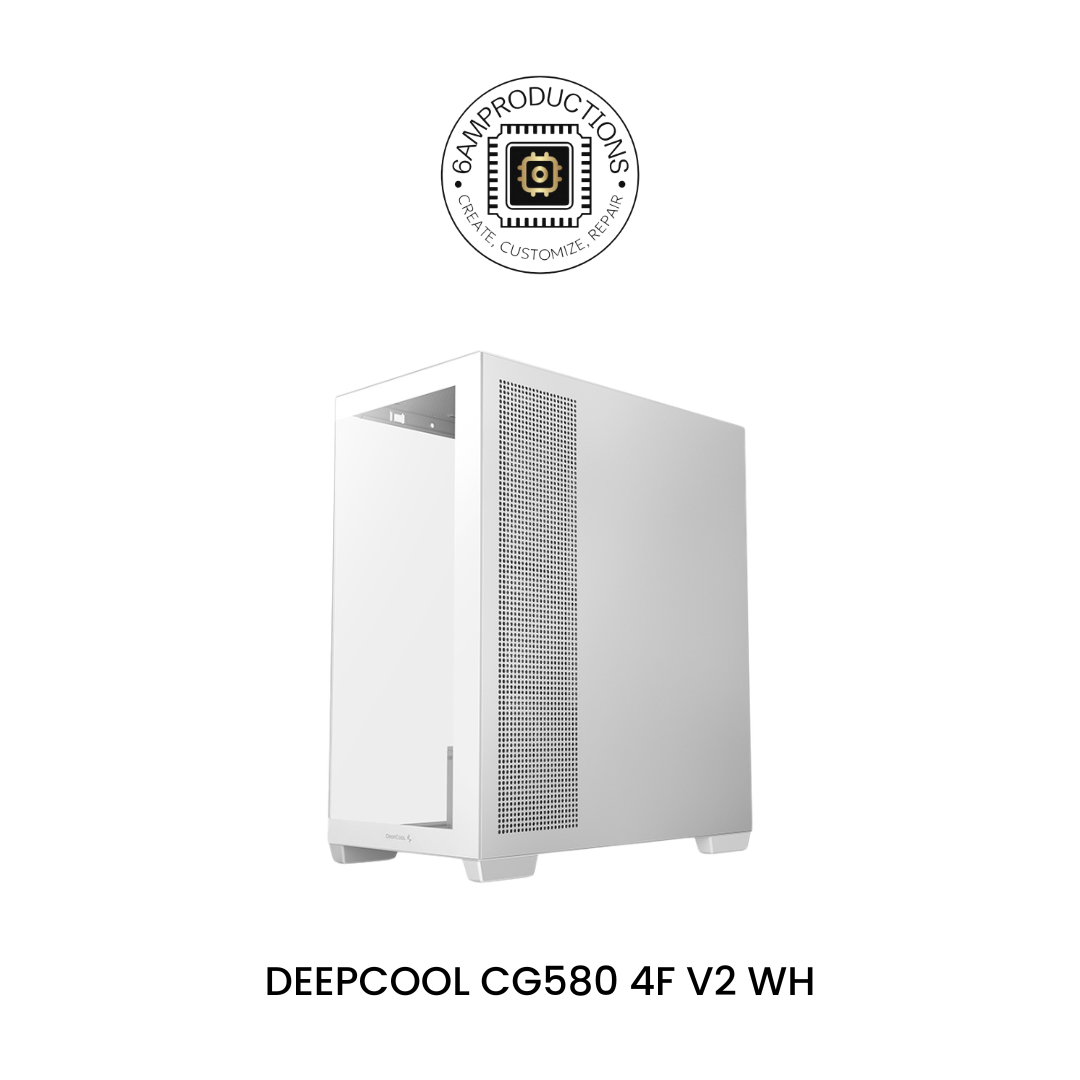

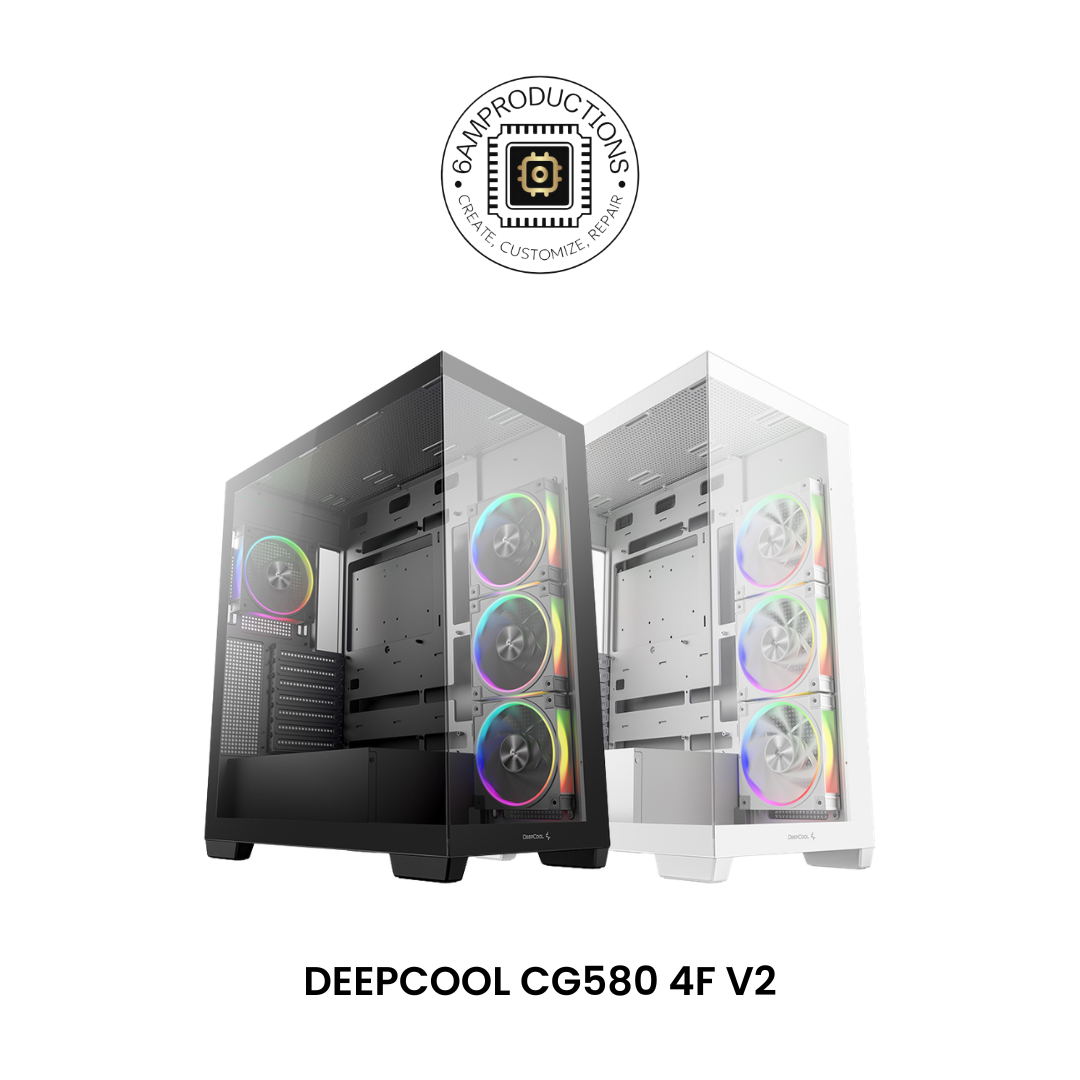

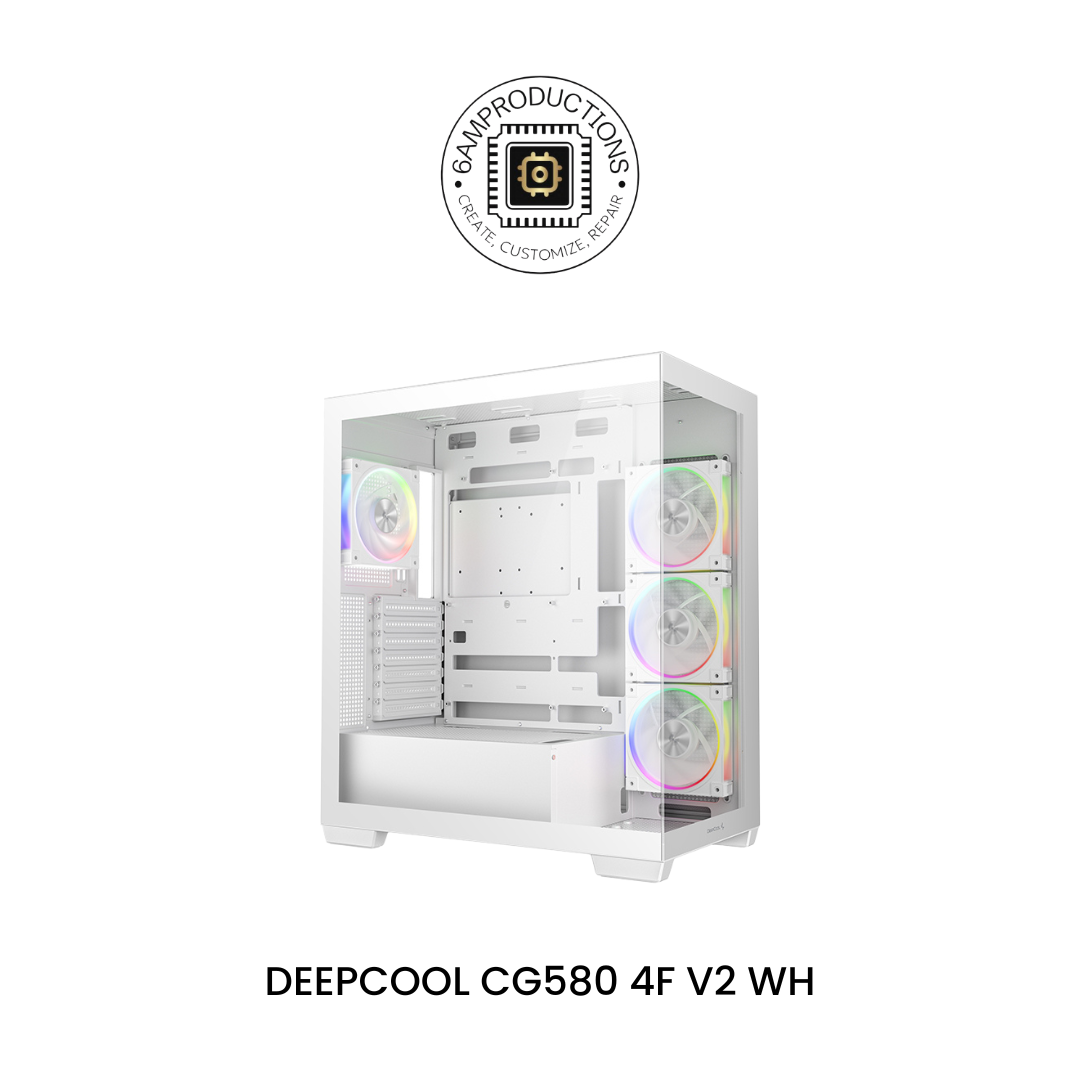

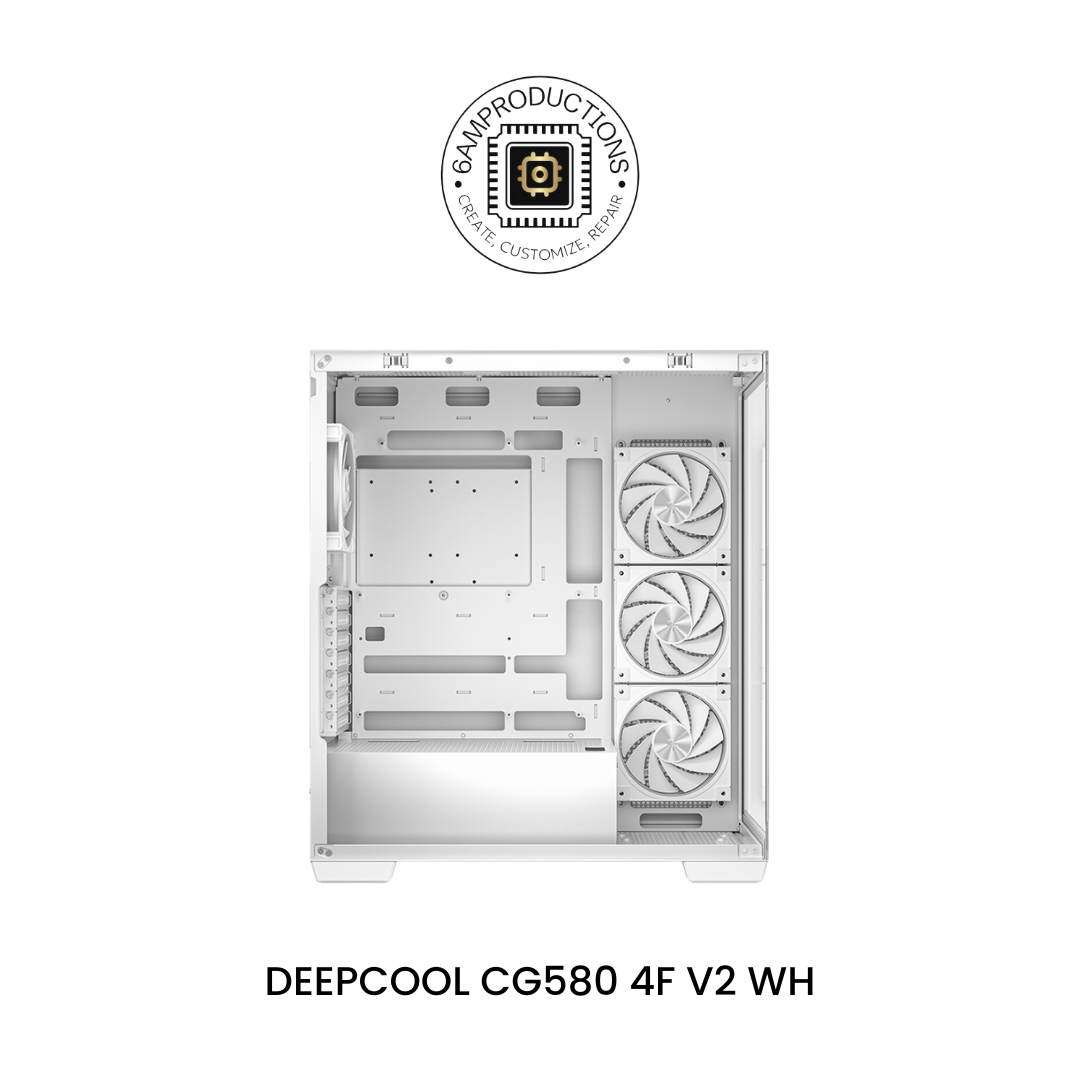

Colourways: Black / White

Case Size: Panoramic Single-Chamber ATX Mid Tower

Motherboard Support: Mini-ITX / Micro-ATX / ATX / rear-connector Micro-ATX / rear-connector ATX

Side Panel: 270° Panoramic Tempered Glass

Expansion Slots: 7 PCIe slots

Drive Bays: 2 × 3.5" HDD / 2 × 2.5" SSD

GPU Clearance: Up to 410 mm / up to 262 mm with a side-mounted 360 mm radiator and fan set

CPU Cooler Clearance: Up to 176 mm

PSU Clearance: ATX up to 210 mm

Fan Support: Top: 3 × 120 mm / 2 × 140 mm; Side: 3 × 120 mm; Bottom: 1 × 120 mm, shared with one 3.5" drive position; PSU Shroud: 2 × 120 mm; Rear: 1 × 120 mm / 1 × 140 mm

Radiator Support: Top: 120 / 140 / 240 / 280 / 360 mm; Side: 120 / 240 / 360 mm; Rear: 120 / 140 mm

Front I/O: USB-C 3.2 Gen 2 × 1 / USB 3.0 × 2 / Headphone & Microphone Combo Jack

Dust Filters: Top / Bottom / Side

Dimensions & Weight: 437 × 235 × 501 mm (L × W × H); 8.8 kg

Additional Information

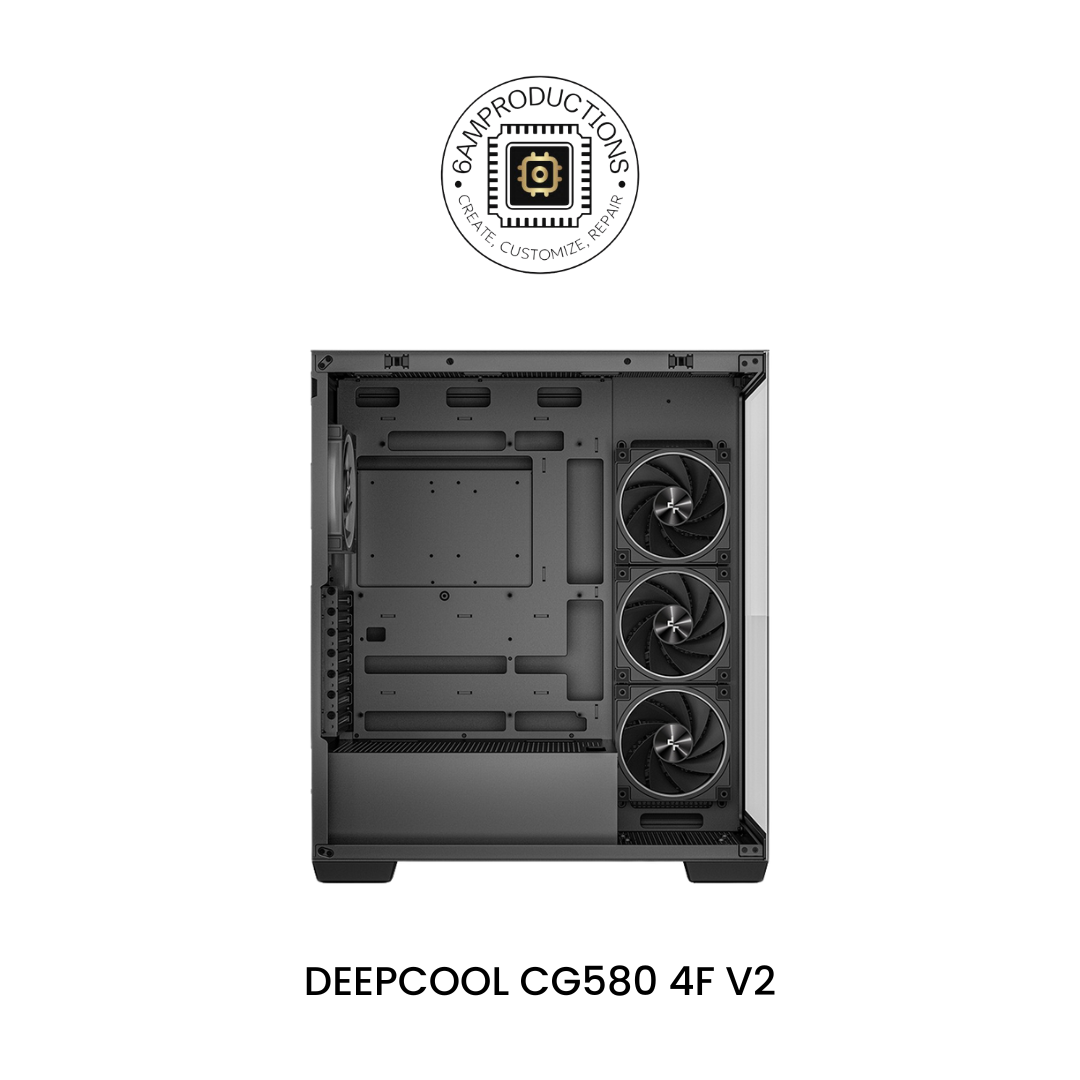

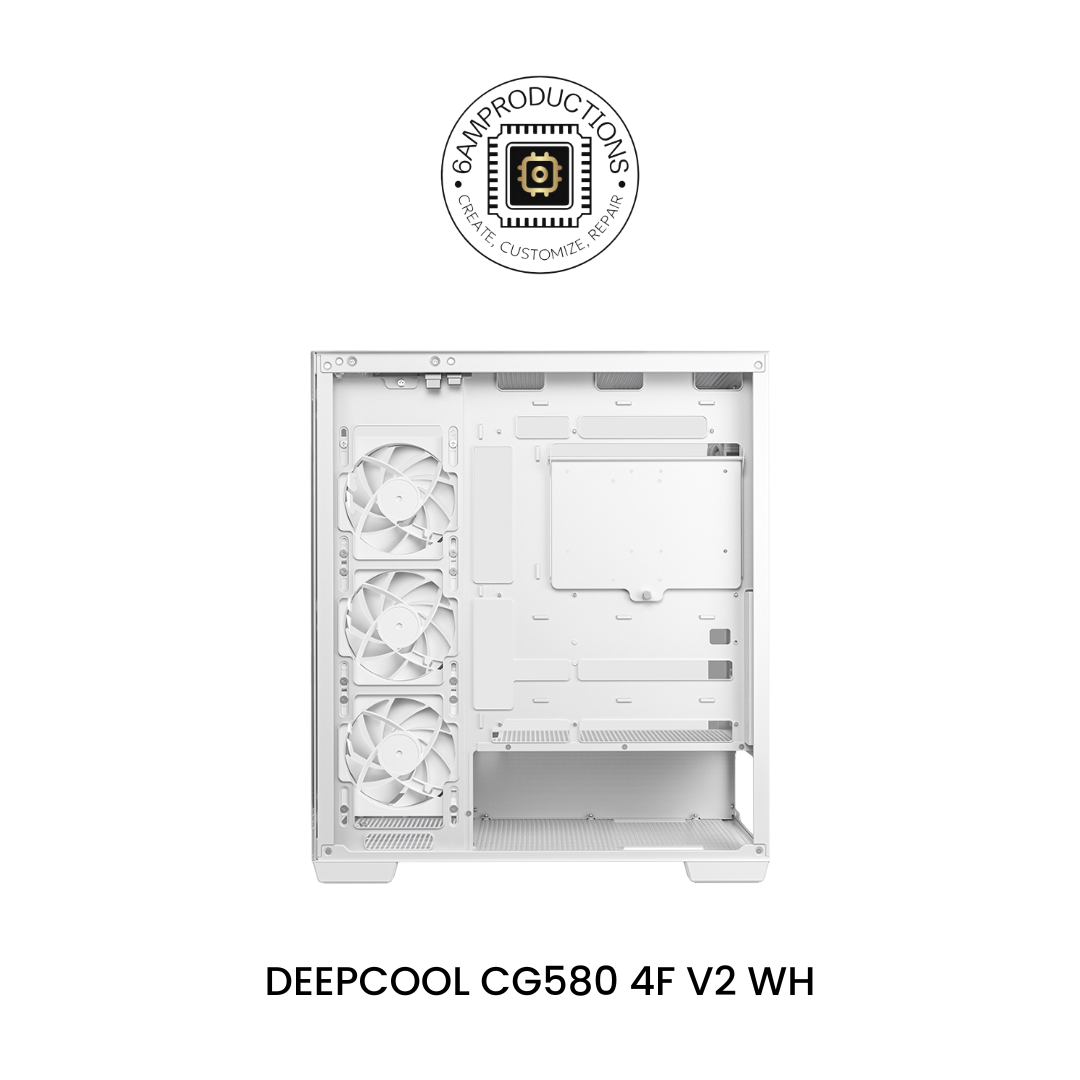

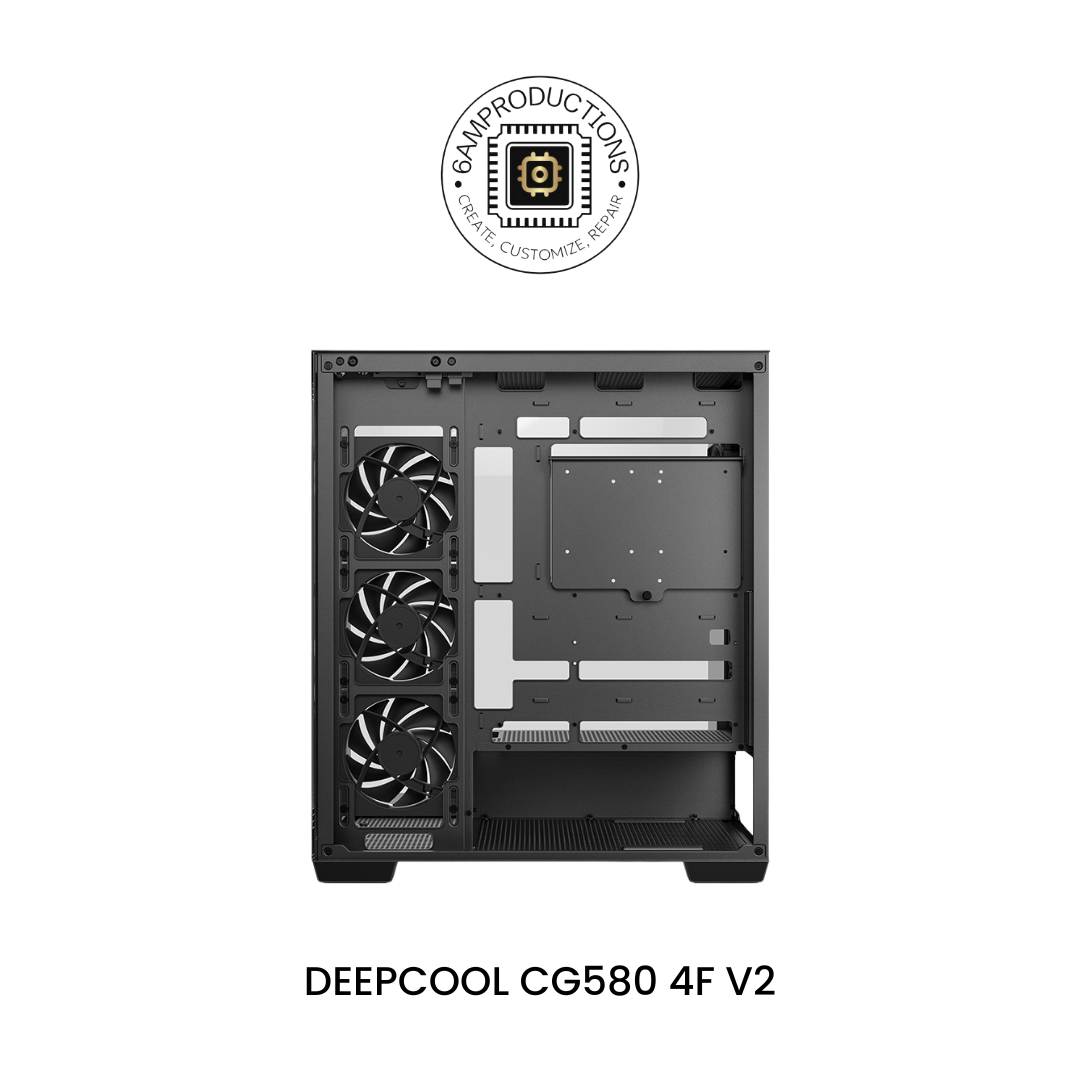

Pre-installed Fans: Side: 3 × 120 mm reverse-blade PWM ARGB fans / Rear: 1 × 120 mm PWM ARGB fan

Airflow / Build Design: Panoramic single-chamber layout with top, side, bottom, PSU-shroud, and rear cooling positions

Cable Management: 33 mm routing space

Rear-Connector Support: Micro-ATX / ATX

Special Features: Built-in LED effects / Magnetic top, bottom, and side filters

WARRANTY: 1 YEAR
