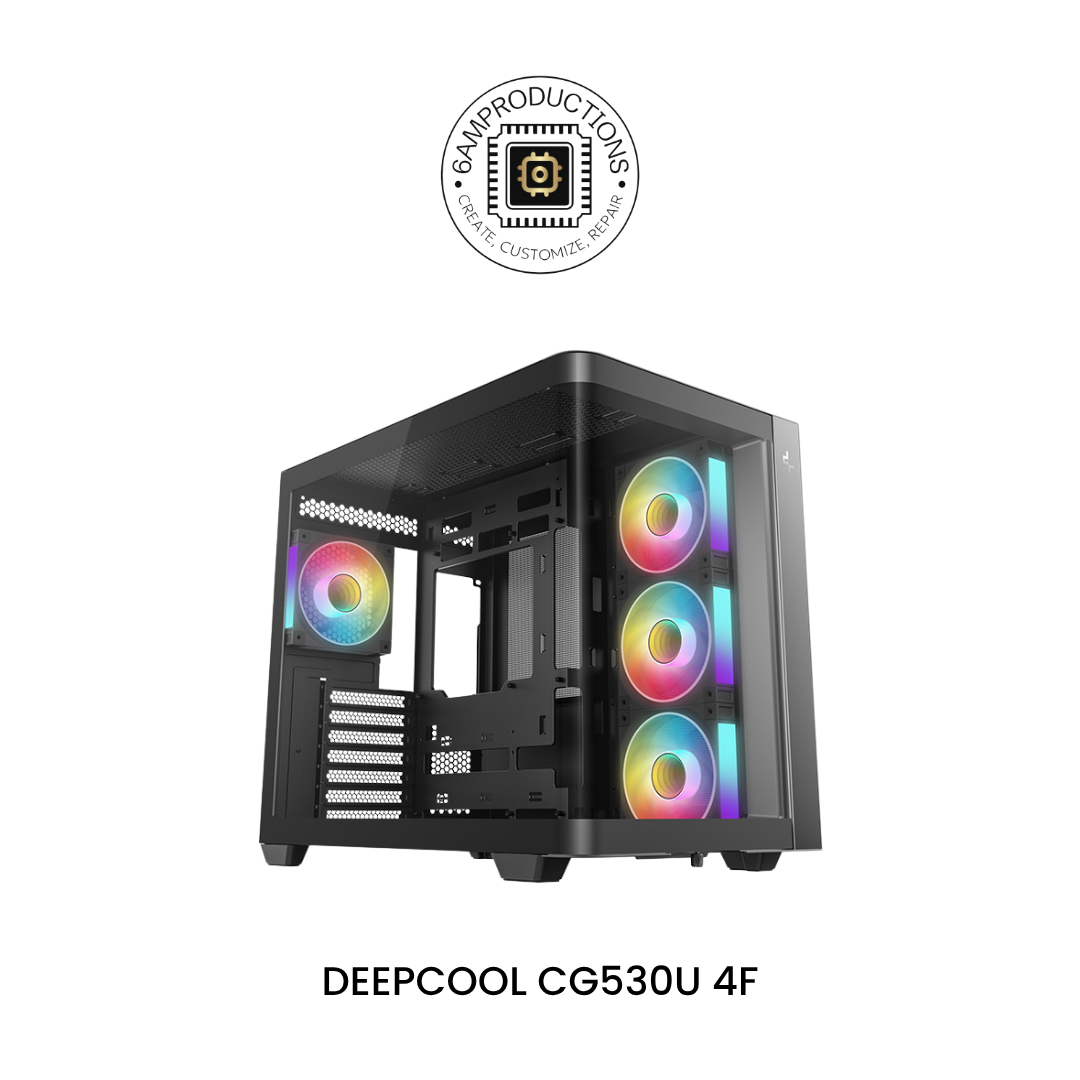

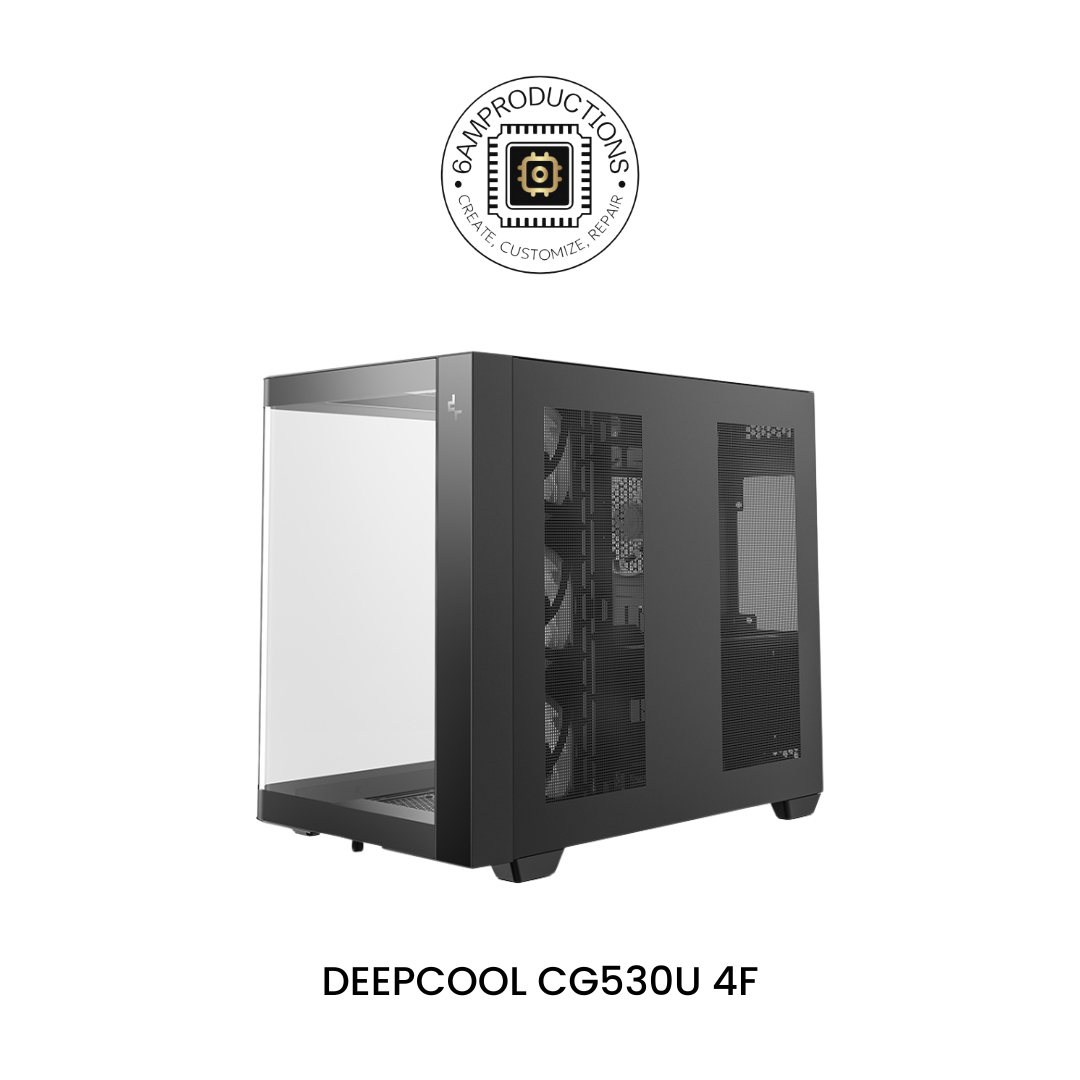

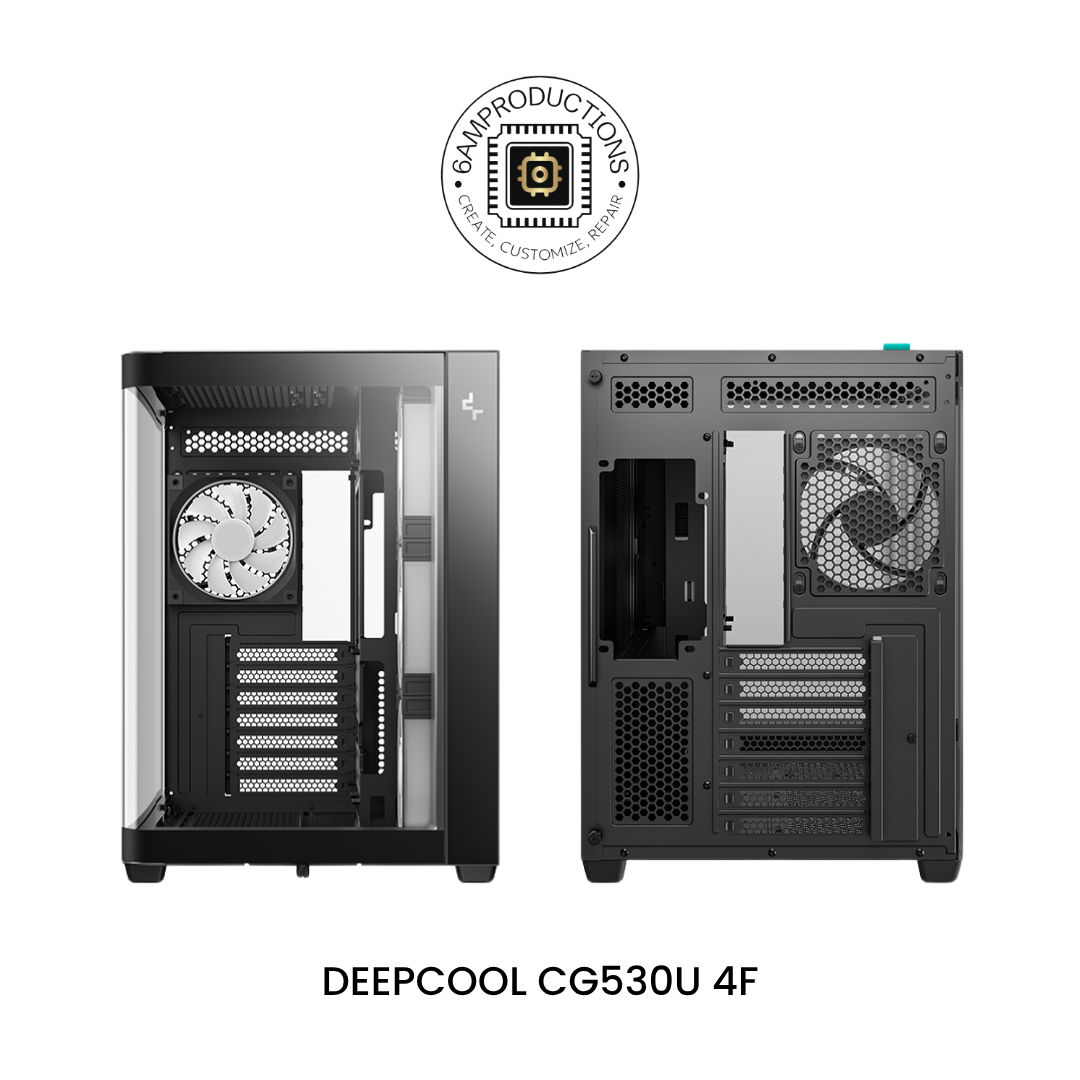

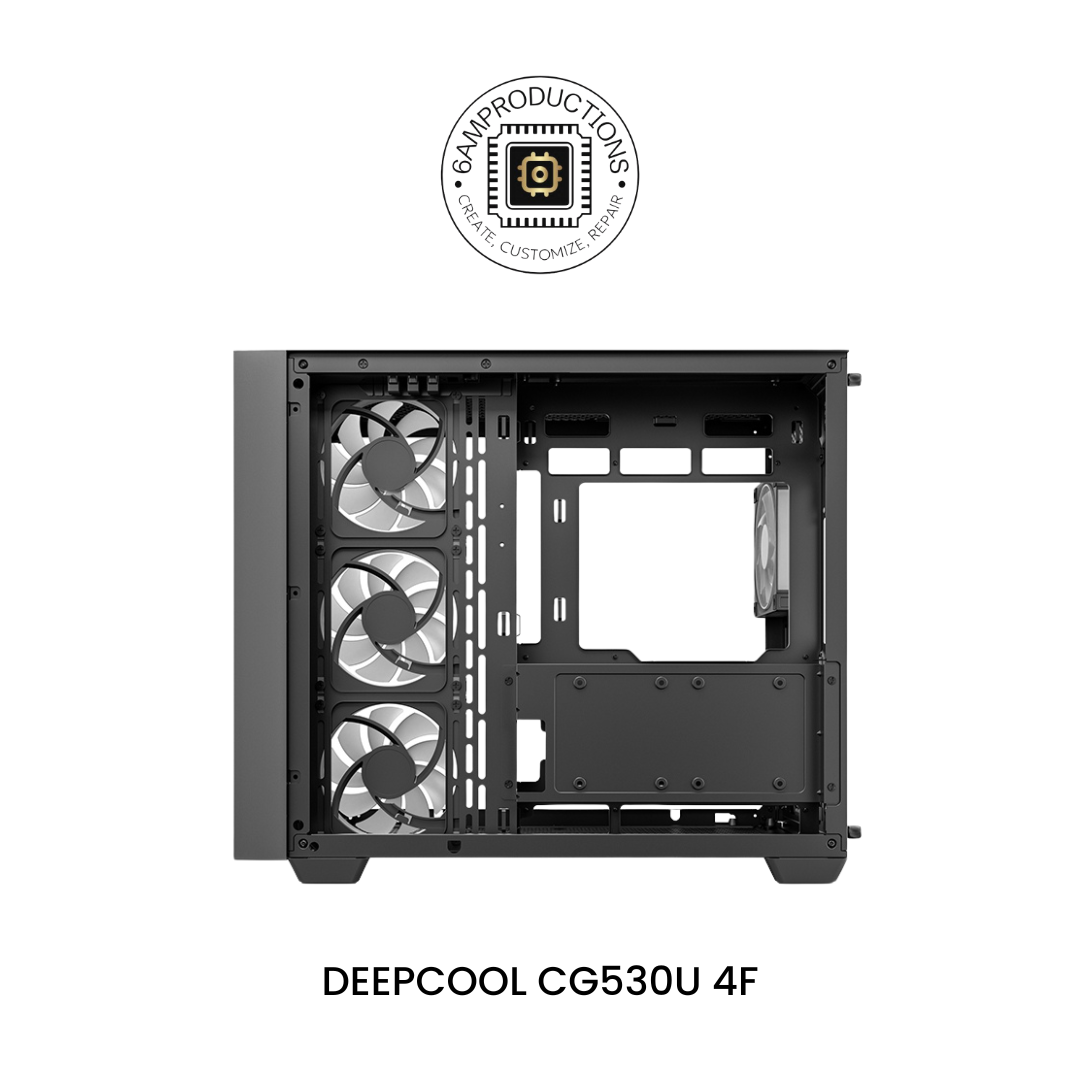

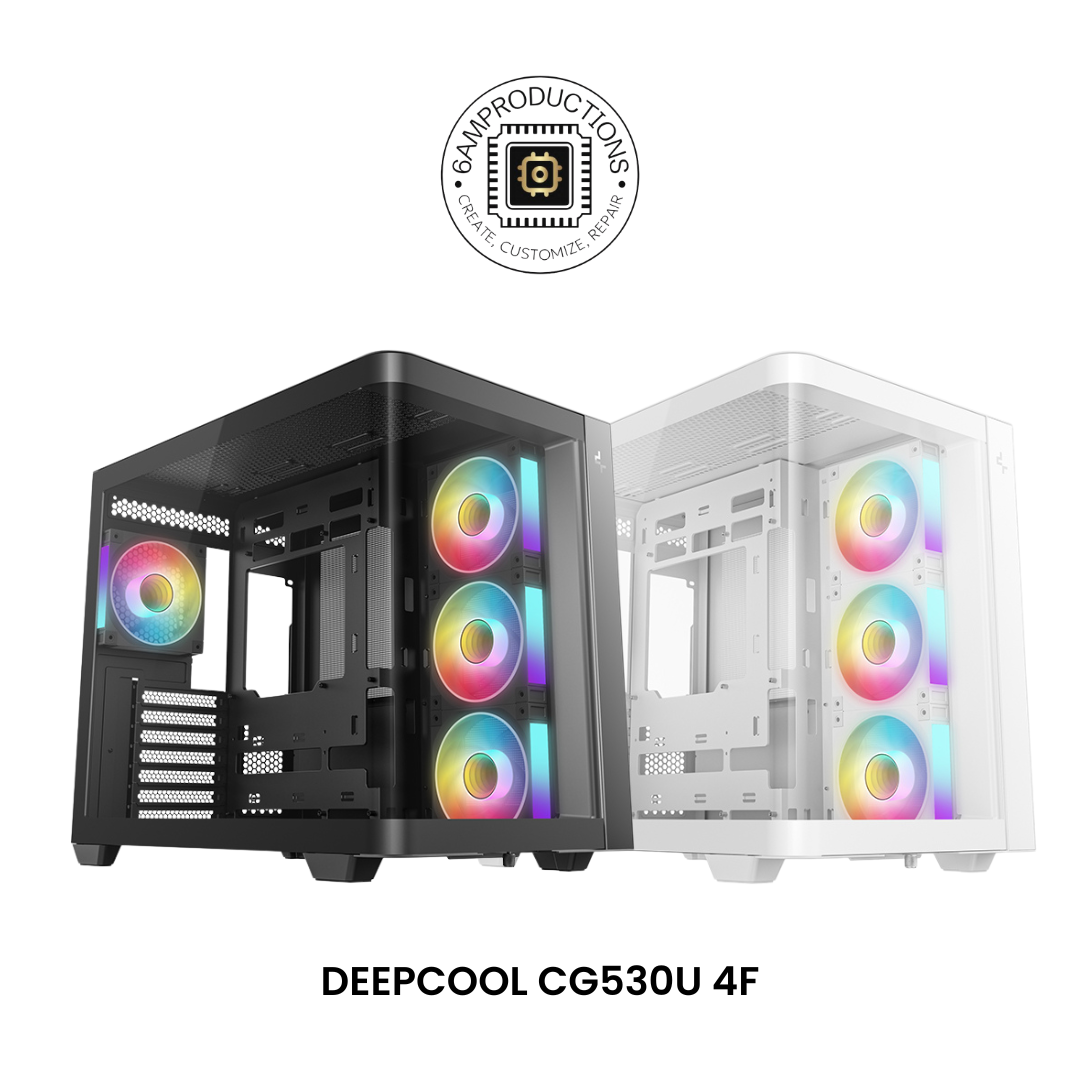

DeepCool CG530U 4F

Key Specifications

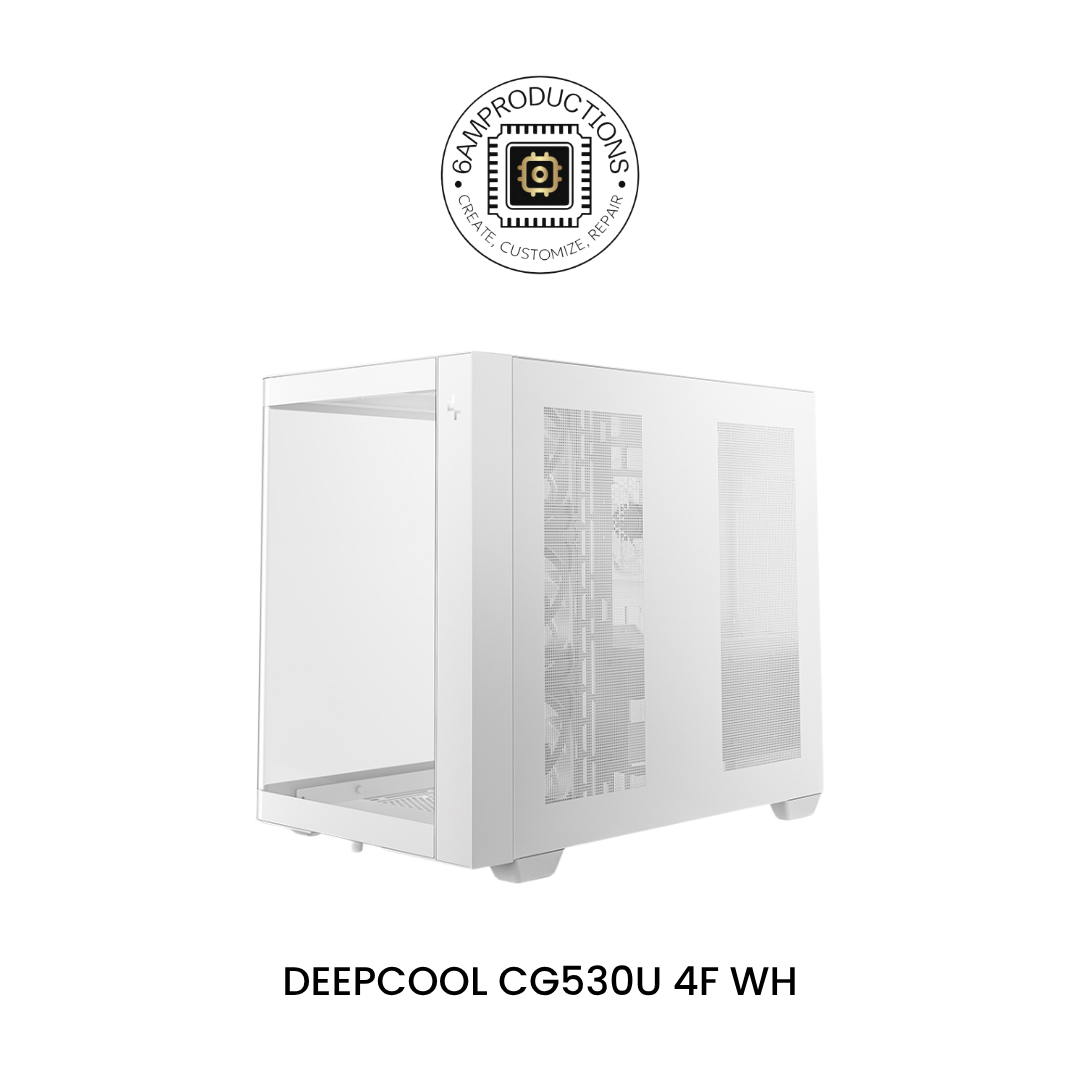

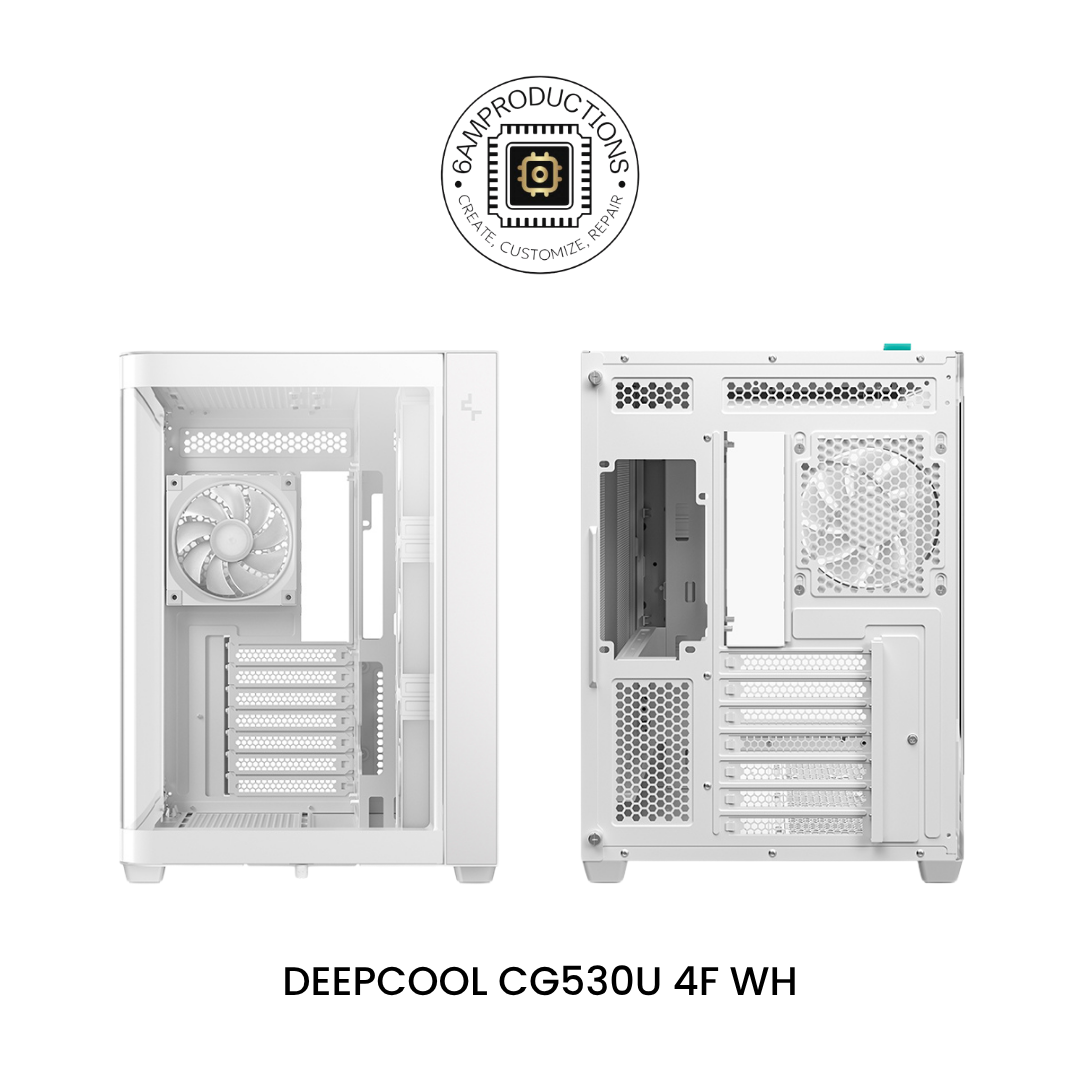

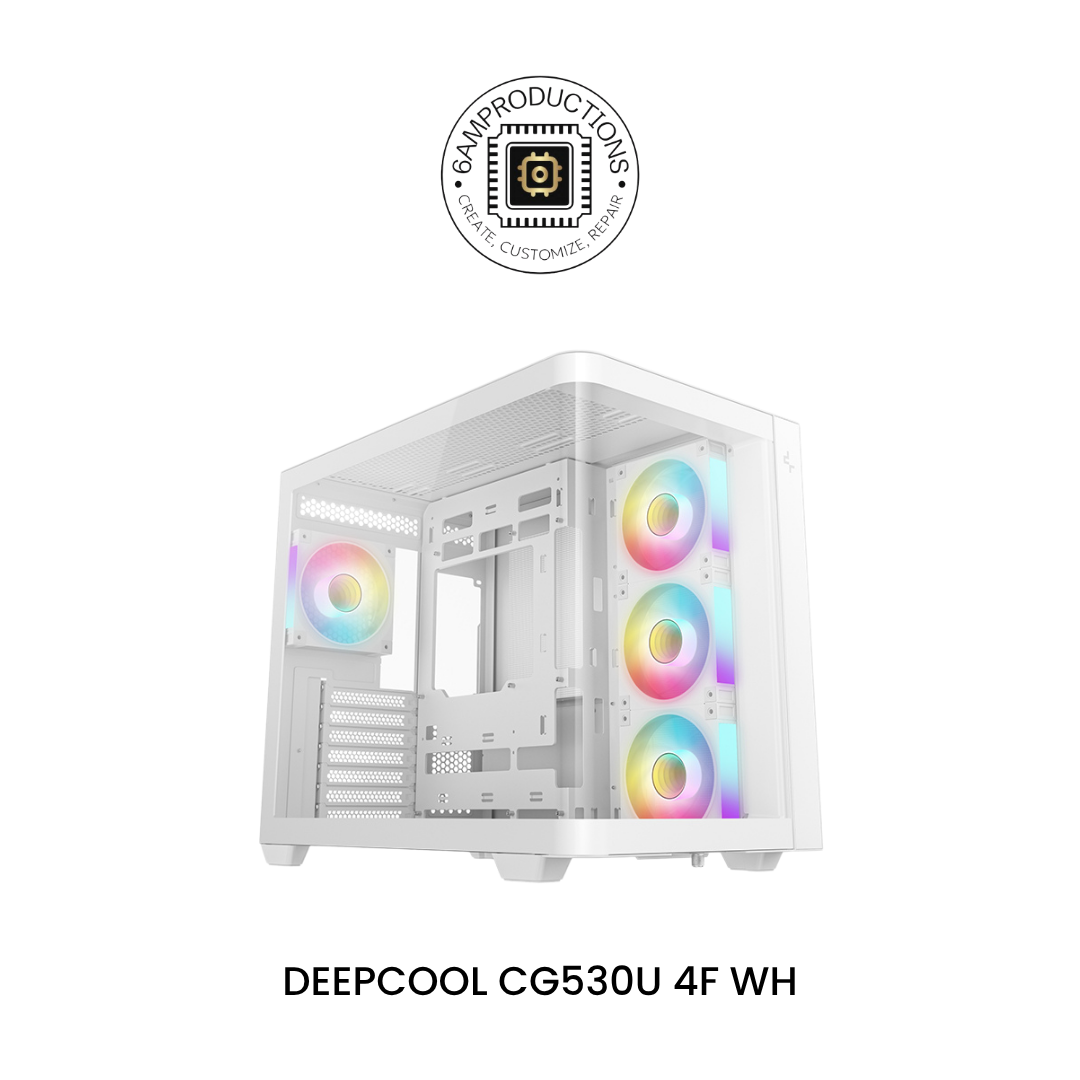

Colourways: Black / White

Case Size: Dual-chamber ATX case

Motherboard Support: Mini-ITX / Micro-ATX / ATX; rear-connector Micro-ATX / ATX

Side Panel: One-piece curved tempered-glass front and side panel

Expansion Slots: 7

Drive Bays: 2 × 3.5-inch HDD / 3 × 2.5-inch SSD

GPU Clearance: Up to 410 mm

CPU Cooler Clearance: Up to 160 mm

PSU Clearance: Up to 210 mm; ATX PS2 / SFX / SFX-L

Fan Support: Top: 3 × 120 mm or 2 × 140 mm; side: 3 × 120 mm or 2 × 140 mm; bottom: 3 × 120 mm; rear: 1 × 120 mm

Radiator Support: Top: 120 / 140 / 240 / 280 / 360 mm; side: 120 / 140 / 240 / 280 mm; bottom: 120 / 240 / 360 mm

Front I/O: 2 × USB 3.0; 1 × USB-C Gen 2; audio/mic combo jack; LED button

Dust Filters: Top / bottom

Dimensions & Weight: 475 × 285 × 380 mm (L × W × H); 7.3 kg

Additional Information

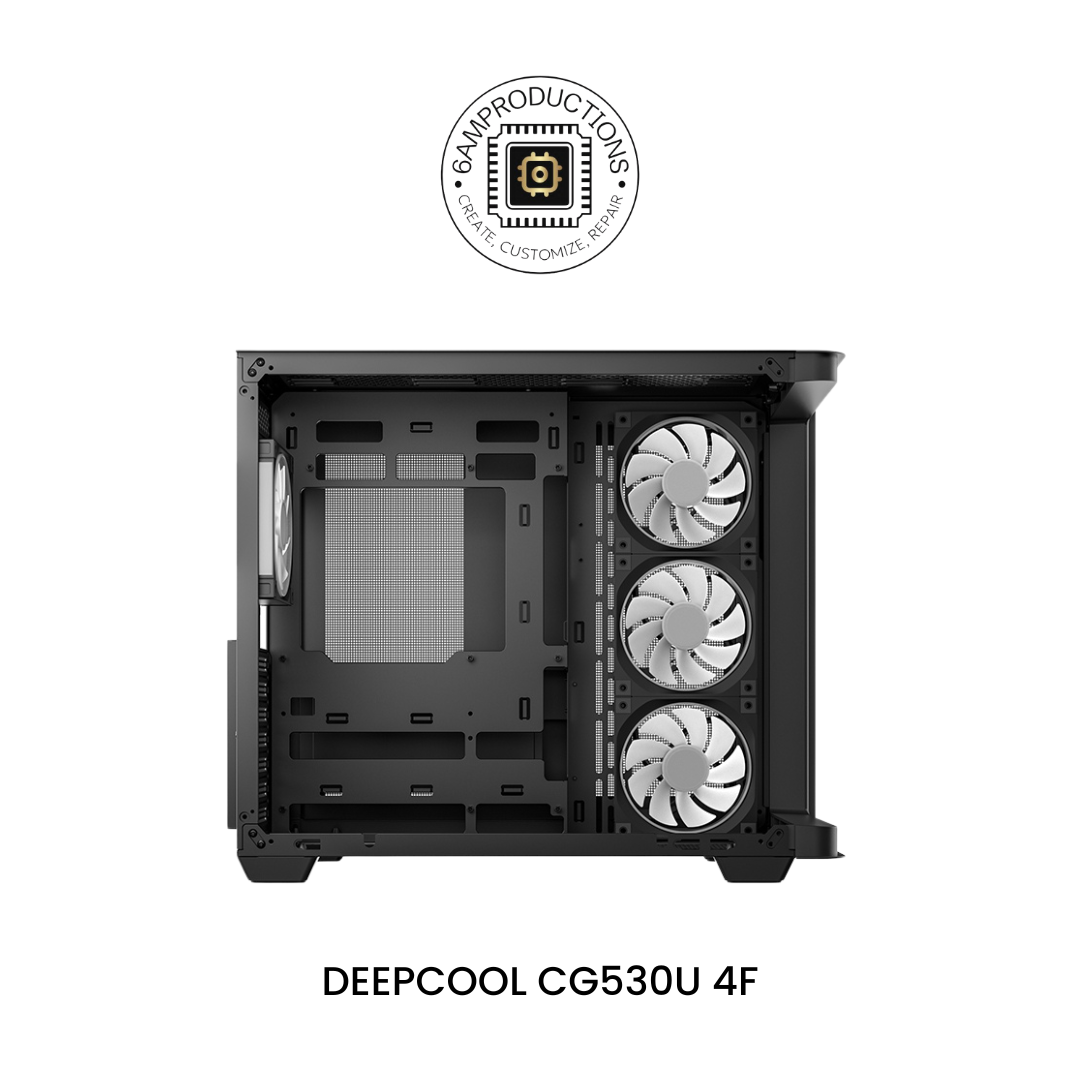

Pre-installed Fans: Side: 3 × 120 mm reverse-blade PWM ARGB fans; rear: 1 × 120 mm PWM ARGB fan

Airflow / Build Design: Dual-chamber panoramic layout

Cable Management: 45 mm cable-routing space

Rear-Connector Support: Micro-ATX and ATX rear-connector motherboards

Special Features: One-piece curved-glass display

WARRANTY: 1 YEAR
