Key Specifications
Form Factor: ATX
CPU Socket / Support: AMD AM5 / AMD Ryzen 9000, 8000 and 7000 Series Processors
Chipset: AMD X870E
Memory Support: 4 × DDR5 DIMM slots, up to 256GB; up to DDR5-8200+ (OC); Intel XMP / AMD EXPO support
Expansion Slots: 1 × PCIe 5.0 x16 / 1 × PCIe 3.0 x16-length slot operating at x2 / 1 × PCIe 3.0 x1
Storage Support: 1 × PCIe Gen5 x4 M.2 / 3 × PCIe Gen4 x4 M.2 / 1 × PCIe Gen3 x2 & SATA M.2 / 4 × SATA3
Graphics Output: 1 × HDMI 2.1 / 2 × USB4 Type-C display outputs
Networking: 5Gbps LAN / Wi‑Fi 7 / Bluetooth 5.4
Audio: Realtek ALC4082 7.1-channel HD audio with Nahimic Audio
USB Connectivity:

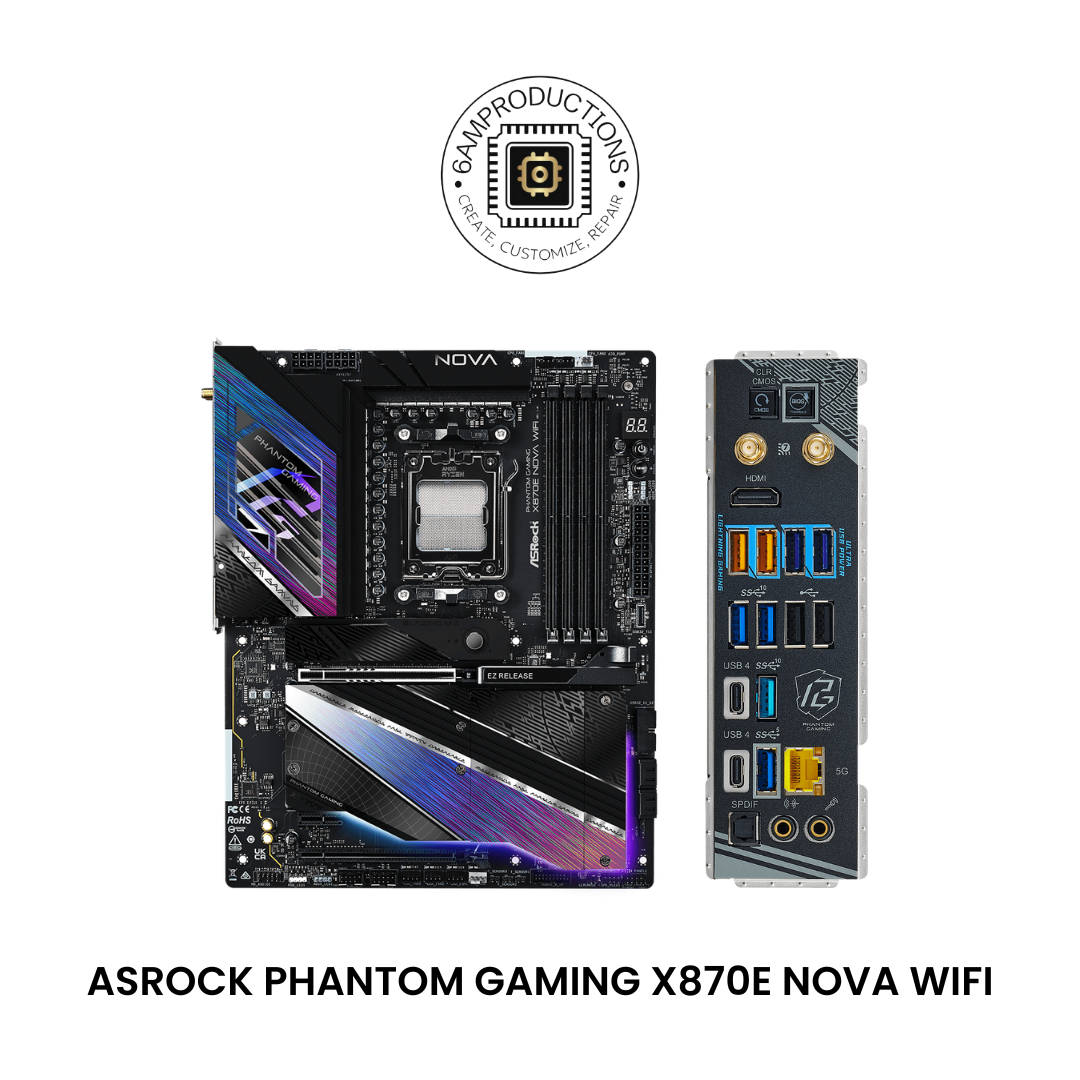

Rear: 2 × USB4 Type-C, 5 × USB 3.2 Gen2 Type-A, 3 × USB 3.2 Gen1 Type-A, 2 × USB 2.0;
Front: 1 × USB 3.2 Gen2x2 Type-C, 4 × USB 3.2 Gen1 Type-A, 4 × USB 2.0
Power Design: 20+2+1 power phase design with 110A SPS
Dimensions: 30.5 × 24.4 cm
Additional Information
Cooling / Heatsinks: Enlarged heatsink armour, toolless multi-layer M.2 heatsink, M.2 bottom heatsink
RGB / Lighting Support: 1 × RGB LED header / 3 × addressable LED headers; ASRock Polychrome RGB / SignalRGB support
DIY / Convenience Features: BIOS Flashback, Auto Driver Installer, flexible integrated I/O shield, EZ Release Design, Dr. Debug, onboard power and reset buttons
Special Features: 5Gbps LAN, server-grade low-loss 8-layer PCB, 2oz copper PCB, Lightning Gaming Ports
Compatibility Notes: Installing an SSD in the fifth M.2 slot disables the secondary x16-length PCIe slot. PCIe/M.2 speeds vary by processor. Display outputs require processor-integrated graphics. Wi‑Fi 7 requires Windows 11.
WARRANTY: 3 YEARS
